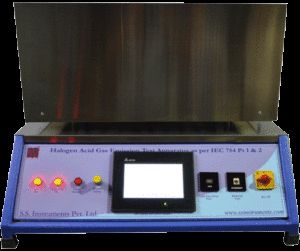

Halogen Acid Gas Emission Test Apparatus ( HMI Model)

Get Latest Price

Temperature Range: Ambient to 1000oC, LC 1oC
Packing: In three wooden boxes
Delivery: 4 to 6 weeks from Order
Furance: Tubular Furnace 50 mm Dia
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

S.S. Instruments Pvt. Ltd.

Laxmi Nagar, Delhi

View Number

Member Since 16 Years
Nature of Business Retailer
Year of Establishment 1985

View Company Details

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Temperature Range: Ambient to 1000oC, LC 1oC
Packing: In three wooden boxes
Delivery: 4 to 6 weeks from Order
Data logging: HMI records are temperature and Air flow and the data is presented in Table and Graph form.
Temperature Control: Using PID Digital Temperature Controller with RAMP facility
Air Flow indicator: Digital using air flow sensor, LC 0.01 LPM
Furance: Tubular Furnace 50 mm Dia
Glass Ware: Air Drying Bottles, Air Collection Bottles with bottle stand and magnetic Stirrer
Air Flow: Controlled Air Flow using needle valve
Combustion Tube / Boat: Made of Quartz, capable of withstanding temperatures up to 1200oC
Display: 7″ Touch Screen HMI (Omron) for display of all the test parameters
Model: SSI 518 HAGH (Halogen Acid Gas Emission Tester HMI Model)
Control: All the parameters of the instrument are controlled using Rockwell PLC

Model Number: SSI 518 HAGH

Standard Number: IEC: 60754 Pt 1 & 2, IS: 10810 Pt 59

Instrument Principle

Compounds based on halogenated polymers and compounds containing halogenated additives emits harmful Halogen Acid Gas while burning. These gases are corrosive and can prove harmful to property and humans in case of fire. IS 18010 (Pt. 59) & IEC 754-1-94 test determine the amount of Halogen gas other than hydrofluoric acid evolved during the combustion of cables and other similar compounds.

Standard

The instrument is manufactured as per the IEC 60754 – 2 fig 4 or IS 10810 Pt 59.

Instrument

The instrument comprising of

Tubular Furnace for temp. up to 1000oC +- 10oC.
PID Digital Temp. Indicating Controller.
Digital Flow Indicator to monitor Air Flow. The flow can be regulated using with needle valve.
Quartz tube and Quartz boat for keeping samples – one each.
Gas Washing Bottles – 2 nos.
Magnetic stirrer.

7″ Touch Screen HMI (Omron) for Test Parameter Display

Rockwell PLC to control various parameters of the test.
Ph Indicator ( for zero Halogen) (optional)
Conductivity Indicator (for zero Halogen) (optional)
