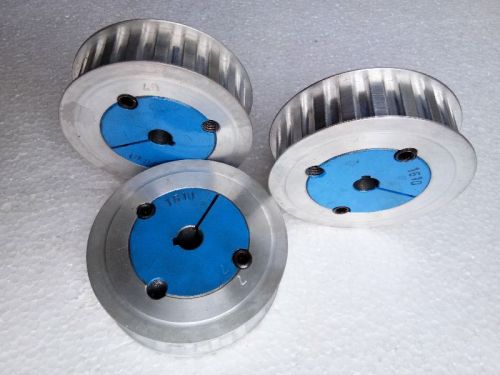

H Pitch Timing Pulley

H Pitch Timing Pulley

Listing ID #3019737

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

We ensure our entire range of products is per domestic as well as transnational quality standards, optimum grade and worth the price paid by purchaser. We have sectioned our infrastructure into diverse units comprising packaging unit in which we meticulously pack our offering so as to ensure hassle free deliveries.   Features:  Durability Seamless finish High strength
View More Details
Send Enquiry

Company Information

Micro Tech (India) Engineering verified-icon
Kathwada, Ahmedabad, Gujarat
View Number
  • Member Since 7 Years
  • Nature of Business Retailer
  • GST No. 24ARYPP7854Q1ZE

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

We ensure our entire range of products is per domestic as well as transnational quality standards, optimum grade and worth the price paid by purchaser. We have sectioned our infrastructure into diverse units comprising packaging unit in which we meticulously pack our offering so as to ensure hassle free deliveries.



Features:

  • Durability
  • Seamless finish
  • High strength


Specifications

Pulley Size No. of Teeth Pulley Type Pitch Diameter PD Min. Bore MB Max. Bore MB Flange Diameter FD Pulley Width PW Bore Length L Hub Diameter HD
Suitable for 25.4mm (1") Belt wide H100
P14H100 14 1F 56.6 11 30 64 32 45 45
P16H100 16 1F 64.68 11 30 70 32 45 45
P18H100 18 1F 72.77 12 36 79 32 45 55
P19H100 19 1F 76.81 14 40 83 32 45 60
P20H100 20 1F 80.85 14 41 87 32 45 62
P21H100 21 1F 84.89 14 43 91 32 45 65
P22H100 22 1F 88.94 14 45 93 32 45 68
P24H100 24 1F 97.02 14 47 102 32 45 72
P26H100 26 1F 105.11 14 54 112 32 45 80
P28H100 28 1F 113.19 14 54 120 32 45 80
P30H100 30 1F 121.28 14 54 128 32 45 80
P32H100 32 1F 129.36 14 54 135 32 45 80
P36H100 36 2F 145.53 14 48 150 32 45 80
P40H100 40 2F 161.7 14 48 168 32 45 80
P44H100 44 2F 177.87 14 48 184 32 50 80
P48H100 48 2F 194.04 14 54 200 32 50 90
P60H100 60 2 242.55 19 54 - 32 50 90
P72H100 72 2 291.06 19 62 - 32 55 100
P84H100 84 2 339.57 19 62 - 32 55 100
P96H100 96 2 388.08 19 70 - 32 60 120
P120H100 120 2 485.1 19 70 - 32 60 120
Suitable for 38.1mm (1 1/2") Belt wide H150
P14H150 14 1F 56.6 11 28 64 46 58 42
P16H150 16 1F 64.68 11 30 70 46 58 45
P18H150 18 1F 72.77 14 36 79 46 58 55
P19H150 19 1F 76.81 14 40 83 46 58 60
P20H150 20 1F 80.85 14 41 87 46 58 62
P21H150 21 1F 84.89 14 43 91 46 58 65
P22H150 22 1F 88.94 14 45 93 46 58 68
P24H150 24 1F 97.02 14 47 102 46 58 72
P26H150 26 1F 105.11 14 54 112 46 58 80
P28H150 28 1F 113.19 14 54 120 46 58 80
P30H150 30 1F 121.28 14 54 128 46 58 80
P32H150 32 1F 129.36 14 54 135 46 58 80
P36H150 36 2F 145.53 14 48 150 46 58 80
P40H150 40 2F 161.7 14 48 168 46 58 80
P44H150 44 2F 177.87 19 48 184 46 58 80
P48H150 48 2F 194.04 19 54 200 46 65 90
P60H150 60 2 242.55 19 54 - 46 65 90
P72H150 72 2 291.06 24 62 - 46 65 100
P84H150 84 2 339.57 24 62 - 46 65 100
P96H150 96 2 388.08 24 70 - 46 65 120
P120H150 120 2 485.1 24 70 - 46 65 120
Suitable for 50.8mm (2") Belt wide H200
P14H200 14 1F 56.6 11 28 64 59 70 42
P16H200 16 1F 64.68 11 30 70 59 70 45
P18H200 18 1F 72.77 14 36 79 59 70 55
P19H200 19 1F 76.81 14 40 83 59 70 60
P20H200 20 1F 80.85 14 41 87 59 70 62
P21H200 21 1F 84.89 14 43 91 59 70 65
P22H200 22 1F 88.94 14 45 93 59 70 68
P24H200 24 1F 97.02 14 47 102 59 70 72
P26H200 26 1F 105.11 14 54 112 59 70 80
P28H200 28 1F 113.19 14 54 120 59 70 80
P30H200 30 1F 121.28 14 54 128 59 70 80
P32H200 32 1F 129.36 14 54 135 59 70 80
P36H200 36 2F 145.53 14 48 150 59 70 80
P40H200 40 2F 161.7 14 48 168 59 70 80
P44H200 44 2F 177.87 19 48 184 59 70 80
P48H200 48 2F 194.04 24 54 200 59 75 90
P60H200 60 2 242.55 24 54 - 59 75 90
P72H200 72 2 291.06 28 62 - 59 75 100
P84H200 84 2 339.57 28 62 - 59 75 100
P96H200 96 2 388.08 28 70 - 59 75 120
P120H200 120 2 485.1 28 70 - 59 75 120
Suitable for 76.2mm (3") Belt wide H300
P14H300 14 1F 56.6 11 28 64 86 100 42
P16H300 16 1F 64.68 11 30 70 86 100 45
P18H300 18 1F 72.77 19 36 79 86 100 55
P19H300 19 1F 76.81 19 40 83 86 100 60
P20H300 20 1F 80.85 19 41 87 86 100 62
P21H300 21 1F 84.89 19 43 91 86 100 65
P22H300 22 1F 88.94 19 45 93 86 100 68
P24H300 24 1F 97.02 19 47 102 86 100 72
P26H300 26 1F 105.11 19 54 112 86 100 80
P28H300 28 1F 113.19 19 54 120 86 100 80
P30H300 30 1F 121.28 19 54 128 86 100 80
P32H300 32 1F 129.36 19 54 135 86 100 80
P36H300 36 2F 145.53 19 48 150 86 100 80
P40H300 40 2F 161.7 19 48 168 86 100 80
P44H300 44 2 177.87 24 48 - 86 100 80
P48H300 48 2 194.04 24 54 - 86 100 90
P60H300 60 2 242.55 24 54 - 86 100 90
P72H300 72 2 291.06 28 62 - 86 100 100
P84H300 84 2 339.57 28 62 - 86 100 100
P96H300 96 2 388.08 28 70 - 86 100 120
P120H300 120 2 485.1 28 70 - 86 100 120

Details


Download Detail File : Click Here
