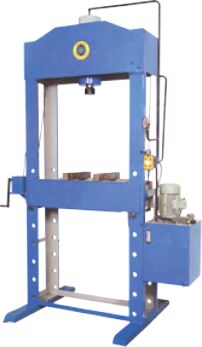

'H Frame Press Machine

Listing ID #3886043

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Power Supply : 400/440 volts, 3 phase, 50 cyckes as day to day improvement are contemplated for better performance of machine, we reserve the rights to alter the specifications without prior notice.....

View More Details

Send Enquiry

Product Details

Uses & Applications : Auto Service Station, Repairing workshop, Pressing ball bearings, Removal of old bushed and mounting new bushes, Industries engaged with the work of straightening. Pressing, Drawing, Embossing, Broaching, Bending, Breaking and Joining of steel, Iron, Plastic,Rubber & Plywood, Electric Motor, Gold / Silver Coin / Monogram Embossing, SUbmersible Pump, Mosaic Tiles.

Frame : The Crown column and Bottom are mild steel fabricated construction. The table is vertically operated by worm winch and it rest on load pin placed in holes in column at required height. Rollers are provided with the table for wasy handling of heavy jobs.

Cylinder : The Hydraulic Cylinder & Ram are made from mild steel. Neoprene rubber pressure seal is mounted at bottom of ram. Socket is provided to facilitate attachment of dies with ram.

Hand Pump : Double plunger pump gives quick ram travel by low pressure plunger and slow speed develops with high pressure plunger.

Power Pack : The Suitable hydraulic power pack provided with the unit includes eighter Gear Pump. Vane pump or plunger pump graven by an electic motor of required brand, control valves, connecting hoses & pipes etc.

Capacity in Tonne	Distance Between Column in M.M.	Distance Between Ram to Bed in M.M.	Travel of Ram Hand Operated	Travel of Ram Power Operated	Motor H.P.
5	625 x 200	150 x 550	100	125	0.5
15	800 x 225	150 x 750	120	175	1
25	850 x 300	175 x 850	125	175	1.5
40	1000 x 400	175 x 1000	150	200	2
60	1050 x 450	175 x 1050	150	200	3
75	1200 x 450	180 x 1200	180	225	3
100	1275 x 525	180 x 1275	200	225	5
150	1375 x 625	200 x 1425	200	250	7.5
200	1450 x 730	200 x 1500	200	300	10

Company Details

With the goal of high degree Quality, RENUKA since 1990 developed & manufactured the Hydraulic Presser Ranging from 2 Tones to 1000 Tons, for Wooden, Rubber, Metal Auto Parts & other Industries, also developed some Import substitute equipments related to Hydraulic for Govt., Semi Govt. & Private Sectors etc.
Hydraulic Presses for friction material with the advance technique of adjustable are breathing System to increase the production & avoid the rejection.
The newly developed RENUKA Hydraulic Deep Draw Press has brought revolution in process of long draw operation. Deep Draw components as required can be taken out in one stroke results in saving of 25% on Raw-material in addition to saving time, labour and many more advantages.
