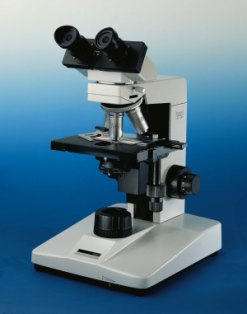

Contact SupplierWe are engaged in manufacturing of H 600 Research Microscope that is designed with precision by the experts. This H 600 Research Microscope provides good & accurate degree of magnification and is durable. We offer H 600 Research Microscope at market leading prices.
Type | J 800B | J 800T | |
---|---|---|---|
Optical System | Infinite Optical System, | _ | _ |
Viewing Head | Seidentopf Binocular Head, Inclined adjustment 0o~40o, Interpupillary Distance: 55~75mm | _ | - |
Seidentopf Binocular Head, Inclined at 30o, Interpupillary Distance: 55~75mm | o | - | |
Seidentopf Trinocular Head , Inclined adjustment 0o~40o, Interpupillary Distance: 55~75mm | - | _ | |
Seidentopf Trinocular Head, Inclined at 30o, Interpupillary Distance: 55~75mm | - | o | |
Eyepiece | WF10X/22mm | _ | _ |
WF16X, WF20X, WF25X, P16X | o | o | |
Nosepiece | Quintuple nosepiece | _ | _ |
Sextuple nosepiece | o | o | |
Objective | Plan Achromatic 4X/0.10,10X/0.25, 40X/0.65 (S),100X/1.25 (S,O) | _ | _ |
Plan Achromatic 20X/0.40 (S), 60/X/0.65 (S) | o | o | |
Stage | Double layers mechanical stage; Stage size: 180×160mm Moving range: 75×50mm | _ | _ |
Condenser | Swing type NA=1.25 Abbe condenser with iris diaphragm & filter | _ | _ |
Focusing | Coaxial coarse and fine focusing adjustment with rack and pinion mechanism Fine focusing scale: 0.002mm | _ | _ |
Illumination | Halogen bulb12V 30W, Adjustable Brightness | _ | _ |
12V/50W or 12V 100W. AC85~230V, | o | o | |
Adjustable Brightness | - | - | |
Collector | Kohler illumination | _ | _ |
Optional Accessory | Fluorescent attachment | o | o |
Phase contrast attachment | o | o | |
Dry and Immersion dark field condenser | o | o | |
Simple polarization attachment | o | o |
Type | H 600 Wilo-Prax Archo | H 600 Wilo-Prax PL | H 600 Wilozyt Achro PL | H 600 Wilozyt Plan | H 600 Wilozyt Plan ICS | H 600 Ph Plan | H 600 Wilo-Brau | H 600 BS | H 600 LL HP 100 | H 600 LL NH 100 | |
---|---|---|---|---|---|---|---|---|---|---|---|
Stand: | Quadruple revolving nosepiece, reversed | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Method of contrast: | Brightfield | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Brightfield & Phase contrast | - | - | √ | √ | √ | √ | √ | √ | - | - | |
DARK field | - | - | - | √ | √ | √ | √ | √ | √ | √ | |
infinity corrected Brightfield & Phase contrast, DARK field | - | - | - | - | √ | - | - | - | - | - | |
Tube: | Binocular, 30° | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Eyepieces: | Widefield 10x/20 | - | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Widefield 10x/18 | √ | - | - | - | - | - | - | - | - | - | |
Objectives: | Achro 4/0,10; Achro 10/0,25; Achro 40/0,65; Achro 100/1,25 (Oil) | √ | - | - | - | - | - | - | - | - | - |
plan 4/0,10; Plan 10/0,25; Plan 40/0,65; Plan 100/1,25 (Oil) | - | √ | - | - | - | - | - | - | - | - | |
Achro 10/0,25, Plan Ph 20/0,40, Plan Ph 40/0,65, Achro 100/1,25 (Oil) | - | - | √ | - | - | - | - | - | - | - | |
Achro 10/0,25, Plan Ph 20/0,40, Plan Ph 40/0,65, Achro 100/1,25 (Oil) | - | - | - | √ | - | - | - | - | - | - | |
ICS PL 10/0,25, ICS PL Ph 20/0,40, ICS PL Ph 40/0,65, ICS PL 100/1,25 (Oil) | - | - | - | - | √ | - | - | - | - | - | |
Plan Ph 10/0,25, Plan Ph 40/0,65, Plan 100/1,25 (Oil) | - | - | - | - | - | √ | - | - | - | - | |
Achro 10/0,25; Plan Ph 40/0,65, A 63/0,85 | - | - | - | - | - | - | √ | - | - | - | |
Achro 10/0,25, Plan Ph 40/0,65, Plan Ph 100/1,25 (Oil) | - | - | - | - | - | - | - | √ | - | - | |
Achro 10/0,25 SPL 100/1,25-0,6 (Oil) with iris diaphragm | - | - | - | - | - | - | - | - | √ | - | |
Plan 10/0,25, Plan Ph 20/0,40, Plan Ph 40/0,65, SPL 100/1,125-0,60 (Oil) with iris diaphragm | - | - | - | - | - | - | - | - | - | √ | |
Magnification: | 40 - 1000 times and More | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Object stage: | Mechanical stage 160x130mm | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Condenser: | NA 0,9 | √ | √ | √ | √ | √ | √ | - | - | - | - |
Combination condenser NA 1,25 | - | - | - | √ | √ | √ | - | √ | - | - | |
Combination condenser NA 1,2, slot in diaphragm DF 63x for darkfield | - | - | - | - | - | - | √ | - | - | - | |
NA 1,4 (DF) | - | - | - | - | - | - | - | - | √ | - | |
Combination condenser NA 0,9 (HF, Ph); condenser NA 1,4 (DF) | - | - | - | - | - | - | - | - | - | √ | |
Illumination: | 12V / 30W halogen, continuous regulation | √ | √ | √ | √ | √ | √ | √ | √ | - | - |
12V/100W halogen, continuous regulation, collector II | - | - | - | - | - | - | - | - | √ | √ | |
Accessories: | 2 Eyeguards, filterslider II, conversion filter, filter VG 9, spare lamp, 2 spare fuses, immersion oil, instruction for use, dust cover, mains cable | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Order number: | 008.0372.0 | 008.0390.0 | 008.0379.0 | 008.0380.0 | 008.0381.0 | 008.0353.0 | 008.0370.0 | 008.0371.0 | 008.0368.0 | 008.03 |
