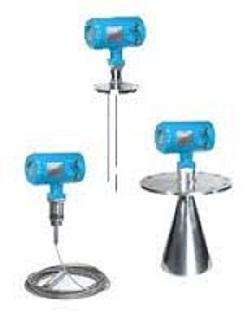

Guided Wave Radar Level Transmitter for Liquid Measuring

Listing ID #781309

In the world of industrial process control, keeping an eye on liquid levels is crucial. Guided wave radar (GWR) level transmitters offer a reliable and accurate solution for continuous level measurement in various tanks and storage vessels. Here's a breakdown of how they work and their key benefits:

Function:

· Unlike pressure-based level sensors or float switches, GWR transmitters utilize high-frequency microwave pulses.

· These pulses travel down a metallic probe (waveguide) extending into the tank.

· When the pulse reaches the liquid surface, a portion of the energy reflects back up the probe to the transmitter.

Operating Principle:

· The transmitter measures the time it takes for the pulse to travel down the probe, reflect off the liquid, and return.

· Since the speed of the microwave pulse in the probe is known, the transmitter can calculate the distance to the liquid surface based on the travel time.

Key Benefits of GWR Transmitters:

· High Accuracy: GWR provides precise level measurement, unaffected by factors like pressure, temperature, or vapor in the tank.

· Non-Contact Measurement: The probe doesn't come in contact with the liquid, making it suitable for various liquids, including corrosive or viscous materials.

· Wide Range of Applications: GWR transmitters can be used for various tank sizes and shapes, making them versatile for diverse industrial applications.

· Minimal Maintenance: With no moving parts, GWR transmitters require minimal maintenance compared to mechanical level sensors.

· Suitable for Foaming Liquids: Unlike ultrasonic sensors, GWR can penetrate through foam, providing accurate readings even in tanks with foaming liquids.

Applications of GWR Transmitters:

· Chemical Industry: Measuring levels of various chemicals, slurries, and acids in storage tanks and reactors.

· Food and Beverage Production: Monitoring levels of liquids like syrups, oils, and milk in processing tanks.

· Oil and Gas Industry: Measuring levels of crude oil, refined products, and water in storage tanks.

· Water and Wastewater Treatment: Monitoring levels in water storage tanks, reservoirs, and clarifiers.

· Power Generation: Tracking levels of water and other fluids in boilers and cooling towers.

Choosing the Right GWR Transmitter:

Several factors need to be considered when selecting a GWR transmitter:

· Tank size and shape: Ensure the probe length is suitable for the tank depth.

· Liquid properties: Consider factors like viscosity, corrosiveness, and the presence of foam.

· Desired accuracy level: Choose a transmitter with the appropriate accuracy specifications for your application.

· Operating temperature and pressure: Ensure the transmitter is compatible with the tank environment.

· Material compatibility: Select a probe material resistant to the liquids being stored.

In Conclusion:

Guided wave radar level transmitters offer a reliable and accurate solution for continuous level measurement in various industrial applications. Their non-contact operation, high accuracy, and wide range of applications make them valuable tools for ensuring efficient and safe process control.
