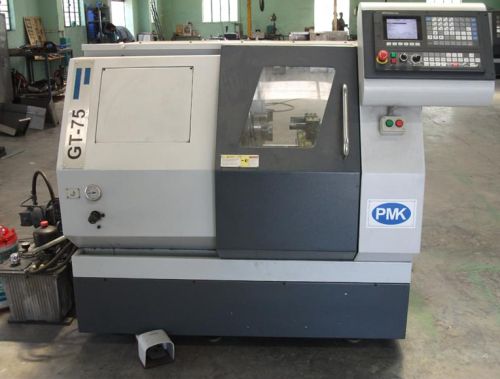

Gt75 CNC Turning Center

Sold By : Precision Machinekraft (Rajkot)

Product Specifications

Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

We are offering gt75 cnc turning center.
capacity

max turning dia:-100mm
max turing length:-150mm
swing over bed:-200mm
std. Turning dia:-75mm

main spindle:-a2-4
bore through spindle:-32mm
bar capacity:-20mm
chuck size:-135 x 3 jaw hydraulic chuck

spindle drive

spindle motor power:-5hp **servo spindle motor as option
spindle rpm:- max upto 3000

axes slides

x axis stroke:-200mm
z axis stroke:-150mm
rapid:- 15m/min
x/z slides:- lm guides

tooling

type:-linear
no. Of tools:-3
max boring bar dia:-32mm
tool shank:-20 x 20

dimension:- 1700 x 1125 x 1500
weight:- approx. 1800kgs
