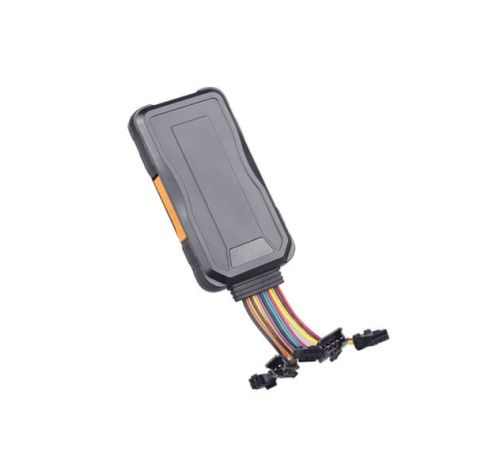

Contact Supplier3G GPS tracker gives you the location of anything, at anytime. Utilizing cutting-edge GPS technology, the GT06E can help you track anything, be it your car, children, or a prized possession, all in real time. The tracker’s manageable size allows you to install it easily, while being tough enough to withstand the bumps and movement of vehicle tracking.
Geo-fence
GT06E allows you to fence off certain areas of the map and be alerted when the tracker enters or leaves the restricted area.
SOS
When under emergency, press the SOS button, and the tracker will send SMS to all authorized phone number and monitoring platform.
Remote petrol/power cutoff
Cut off petrol or power by SMS command.
Vibration/Overspeed alert
As soon as the device detects any vibration or overspeed, it will send alerts to you.
ACC detection
Update the vehicle’s status quickly and accurately.
Hardware Specification
Communication System | WCDMA/GSM |
Frequency | WCDMA 850/900/1900/2100MHz |
GSM 850/900/1800/1900MHz | |
Networks | WCDMA /EDGE/GPRS |
Output Power | Class 3 (24dBm +1/-3dB) for UMTS bands |
Class 4 (33dBm ±2dB) for GSM 850/900MHz | |
Class 1 (30dBm ±2dB) for GSM 1800/1900MHz | |
Receive Sensitivity | -110dBm/UMTS Bands |
-106dBm/GSM 900MHz,GSM 1800MHz |
GPS
GPS Chip | MTK high sensitivity GPS chip |
Frequency | L1,1575.42MHz C/A code |
Channels | 66 |
Location Accuracy | <10 meters |
Tracking Sensitivity | - 165dBm |
Acquisition Sensitivity | - 148dBm |
Location time | Hot start:≤2sec(open sky) |
Cold start:≤35sec(open sky) |
Main Specifications
Monitoring Scope | ≤ 5M |
Antenna | Built-in GPS ceramic antenna; GSM quad-ban antenna |
LED Indicator | GPS(blue), GSM(green), Power(red) |
Operating Voltage | 9-36VDC |
Operating Temperature | 450mAh/3.7Vindustrial lithium polymer battery |
Operating Humidity | 5%~95%,non-dense |
Built-in Battery | 450mAh/3.7Vindustrial lithium polymer battery |
Standby | 4 hours |
Dimension | 98(L) ×52.0 (W) ×15.0 (H) mm |
Weight | 80g |
