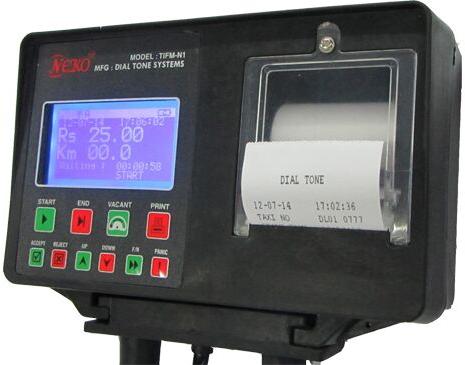

GSM Enabled Electronic Fare Meter

Listing ID #3974760

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Certifications/Approvals: IP-54, RRSL, ERTL, DIMTS etc. Backlit LCD Display which displays various meter parameters such as GPS Strength, GSM Strength, Battery Status, Fare, Waiting Time....

View More Details

Send Enquiry

Product Details

Certifications/Approvals: IP-54, RRSL, ERTL, DIMTS etc.
Backlit LCD Display which displays various meter parameters such as GPS Strength, GSM Strength, Battery Status, Fare, Waiting Time etc.
Real Time Clock for Date, Time & automatic changeover from day to night & vice-versa during the course of the journey.
Real Time tracking of location (GSM & GPS) and vehicle parameters via integrated GPS & GSM modules.
Backup storage for positional logs in event of signal loss.
Integrated Thermal printer to print Receipts & Reports.
Battery backup of more than 6 hrs to transmit vehicle location information
Various configurable parameters (over the air) such as frequency of transmission of vehicle data, fare.
External Panic Button, Hooter for passenger safety.
Tampering protection and alerts.
Can be easily configured to meet any requirement.
Maintains & generates reports of Total Trips, Paid Kms, Rupees, Drops & Kms.
Indigenous design with low cost of ownership & maintenance.

CPU	ARM Cortex
Display	4x20 Backlit LCD Display
	View area 70MIN(W) X 40MIN(H)
Keypad	Type: DOM Switch
	No of Keys: 9
Printer	Type: 2 inch Thermal
	Speed: 80mm/sec
	Resolution: 8 dots/mm of resolution
GPS	Receiver Band Frequency: 1575.42MHz
	Channel Number: 22 (tracking) / 66 (acquisition)
	Horizontal Position Accuracy: Autonomous <2.5m CEP
	TTFF with AGPS: Cold Start <15s, Warm Start <5s, Hot Start <1s TTFF without AGPS: Cold Start <35s, Warm Start <30s, Hot Start <1s
	Protocols: NMEA 0183, PMTK
	Antenna: Internal Active Patch Antenna
GPRS	Quad-band: 850/900/1800/1900 MHz
	DATA: GPRS Class 12 Max. 85.6 kbps (uplink & downlink)
	Protocols: PPP/TCP/UDP/HTTP/FTP/SMTP/MUX
	Voice: 2 Way Communication option
Sensor	Proprietory Protocol with tamper detection
Internal Battery	Type: Lithium Ion
	Capacity: 1250mAH
	Backup Time: 6 Hours
RTC Battery	Lithium Ion Coin Cell
Power Supply & Circuit Protection	Vmin = 5V Vmax = 36V
	Protection: TVS Diodes, PTC, Voltage Suppressors
