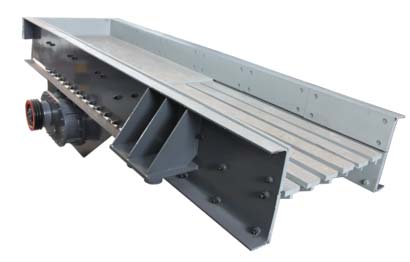

Contact SupplierOur organization has successfully expanded its business in market owing to the offered elevated quality range of Grizzly Feeder.
Features: Special design of grizzly manganese bars eliminates Material clogging and to better sizing effect Four sets of load rubber bells stand to better stabilize the operation Heavy welded frame for better wear resistant Adjustable bolted grizzly bars to meet specific requirement of the user Special Quality vibrating Motor Other
Details: Feeders are applied for both primary as well as secondary crushing stations These Grizzly Feeder are used to regulate the feeding of the jaw/cone crusher, which enables smooth run of the crusher with high production rate The Vibro feeders with Grizzly sections control the feed rate to the crusher by removing unnecessary material & bypassing the smaller material to the crusher for maximizing crushing capacity.
Technical Specification for Grizzly Feeder: Model Size (mm) Motor Power (HP) Maximum Feed Capacity * TPH HGR1000 1000 x 3000 6 120 HGR1200 1200 x 4500 10 350 Capacity Based on Regular Flow on Bulk Density of 1600 kgs per CUM.
