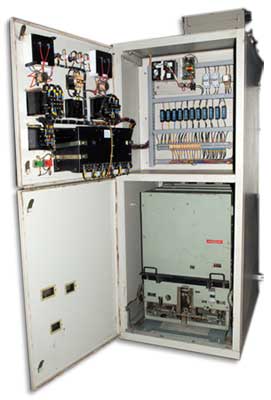

Contact SupplierWe are listed at the apex in the list of the preeminent VCB Panel Boards Suppliers in Uttar Pradesh. Our array of precision engineered Vacuum Circuit Breaker (VCB) Indoor Panels are manual or motor operated. The VCB Panels are used in 11KV/33KV systems. Additionally, customers are eased with the availability of the Vacuum Circuit Breaker Panels at the most nominal prices.
Used In :
Features :
S.No | Type | SAN-VAC-800 | SAN-VAC-1250 | |
---|---|---|---|---|
1 | Nominal System Voltage | kV | 11 | 11 |
2 | Highest System Voltage | kV | 12 | 12 |
3 | Number of phases | 3 | 3 | |
4 | Frequency | Hz | 50 | 50 |
5 | Normal Current (630/800/1250) | Amps | 800 | 1250 |
6 | Symmetrical Breaking Capacity at 12kV | kA | 13.1 | 18.4 |
7 | Making Capacity | KAp | 33 | 50 |
8 | Short Time Current | KA/3Sec | 13.1 | 18.4 |
9 | Impulse Withstand Voltage | Kvp | 75 | 75 |
10 | Power Frequency Withstand Voltage | kV | 28 | 28 |
11 | Operating voltage | VDC | 24 | 24 |
Vaccum Circuit breaker | IS 13118:1991 |
---|---|
Panel | IS 3427:1997 |
Current Transformer | IS 2705:1992 |
Voltage Transformer | IS 3156:1992 |
