Mark-10 Corporation manufactures various types of force gauges depending on their accuracy, sampling rate, and memory.

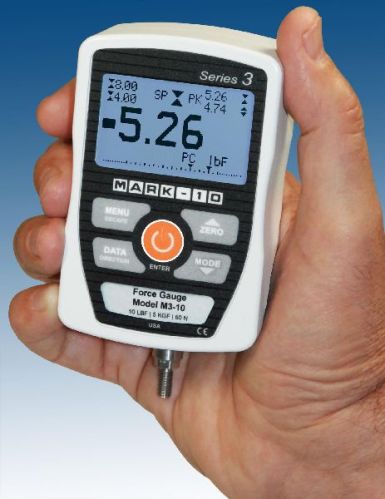

Series 3 gauges are compact systems and the output provided is USB.
Specifications:
Accuracy: ±0.3% of full scale
Sampling rate: 2000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life: Backlight on: up to 7 hours of continuous use, backlight off: Up to 24 hours of continuous use
Measurement units: lbF, gF, kgF, N (depending on model)
USB outputs: Configurable up to 115,200 baud.
Safe overload: 200% of full scale (display shows “OVER” at 110% and above)
Weight: M3 - 012 - M3 - 100: 0.7 lb [0.33 kg] M3 - 200 - M3-500: 0.9 lb [0.41 kg]
Included items: Carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge)
Warranty: 3 years (see individual statement for further details)
Series 3 would be supplied with a NIST traceable certificate.
Features:
For more, visit https://www.youtube.com/watch?v=KJCSIbbMx5g
