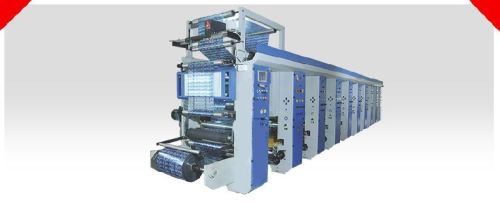

GRAPHICA ECONOMIC ROTOGRAVURE PRINTING MACHINE

Listing ID #4293191

Get Latest Price

Working widthUp to 1000 mm
Dimension of station400 x 1940 x 32el
Speed100 M/ min (max.)
Print repeat range400 – 1000 mm
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Drying system Single side closed closed chamber
Heating system Electrical / Hot Air
Working width Up to 1000 mm
Print repeat range 400 – 1000 mm
Dimension of station 400 x 1940 x 32el
Speed 100 M/ min (max.)
Material to be print Polyester, Film, Foil/ BOPP/ LD/ LLDP & Paper

A2Z Machines specialises in manufacturing high quilty Rotogravure Printing Machines enabled for Short run, High quality printing producing a sharp, fine image specially for carry bags, Shrink PVC, Foil & best for new corner. Available up to 8 colour printing, the Economy model is a cost effective alternative and gives best result at a speed of 80 – 100 M/ min.

PRINTING HEAD

Cast iron size 400 x 1940 x 32 for each station
Pneumatic system for Imp. roller and doctor blade
Specially developmed spiral bevel gearbox, for cyclinder drive (Shanthi make)
Liner ballscrew assembly fitted with special gear box for registration control (motorized)

UNWIND

Electrical powder brake system with load cell feedback or motorised
Suitable dia. Of parent roll 800 mm
Movable type linear bearing unwind with web guide

REWINDER

Motorized AC drive for Rewinder suitable up to 800 mm dia
Fixed type rewinder with single shaft mounting assembly

OPTIONAL

5 Drive system with in-feed out feed station complete
Motorised tension control
Turnbar system & Web Video System
