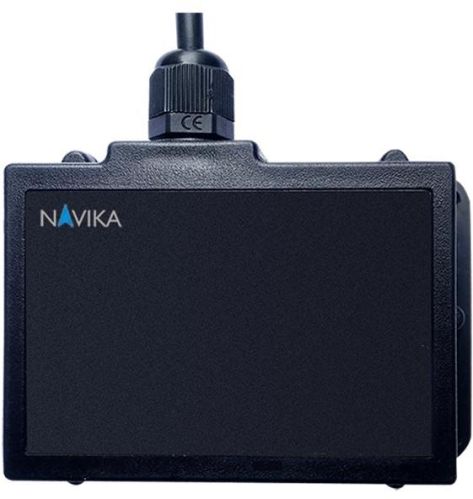

Navi-Track: GPS Vehicle Tracking Unit:
Navi-Track is a GPS-SBAS based vehicle tracking unit (VTU) designed for tracking applications. It is built around Navika Electronics’ application module – Navika-110.
The GPS-SBAS on the Navi-Track provides unmatched performance in terms of sensitivity and time to first fix. The multi-band GSM GPRS modem is interfaced to the Navika-110 over the UART for data communication. The general purpose IO’s of the Navika-110 are conditioned and brought out of the Navi-Track to serve as digital IO and analog inputs.
Main Features of Navi-Track are
• GPS-SBAS position engine with application processor
• Dual Quad band GSMGPRS modem
• Four digital inputs and two digital outputs with optical isolation
• Two Analog inputs
• Supports CAN 2.0 protocol
• Operating voltage range: 6 to 36V
• InternalExternal GPS antenna
• Internal GSM antenna
• Location transmission over SMS and or GPRS
• Supports unit configuration over SMS andor Serial interface
• Non-volatile memory for data logging
• Battery backup for stand-alone operation
• Supports TCPIP, HTTP & UDPIP protocols
• Over the Air firmware upgrade
• Tampering alert for antenna and battery
• IP67 enclosure supporting for automotive standard

Company Details

Navika Electronics is a fabless semiconductor company that designs and manufactures GNSS Chipsets, GNSS Modules (GPS+GLONASS+SBAS) and Reference Designs (Vehicle Tracking Unit, Auto/Taxi Fare Meter, Time and Frequency Module) based on Global Navigation Satellite Systems (GNSS) including GPS, GLONASS, Galileo, IRNSS, SBAS (WAAS, EGNOS, GAGAN). The offerings are targeted for various segments such as Consumer (Tablet, Handheld, PND, PDA), Communication (Software defined Radio, Satellite Terminal, Satellite Radio, wireless base stations time synchronization like WIMAX, LTE, GSM-BTS/BSC, Femtocell , Security (Asset tracking, E-call), Automotive (M2M, vehicle tracking, Auto/Taxi fare meter, vehicle navigation), Industrial (Thermal Imager, Timing solution for smart grid, Railway signaling), Avionics (UAV, MUAV) etc.
Navika Electronics offers RF and digital chips for GNSS applications. GPS, Galileo, SBAS and GLONASS constellations are supported by miniature, highly integrated RF front-ends. In addition, Navika Electronics offers GNSS correlator chip for GPS, GLONASS and QZSS constellations and a digital SOC with GPS-SBAS correlator integrated alongside an ARM7 processing core and several industry standard peripherals (UART, USB, CAN, SPI, I2C, GPIO, Timers etc.). Navika Electronics also offers a single chip GPS-SBAS solution with integrated flash on a compact 8mm x 8mm package.
The GNSS correlator architecture supports parallel acquisition and tracking channels to facilitate fast acquisition and tracking of very weak signals (typically -160dBm).
