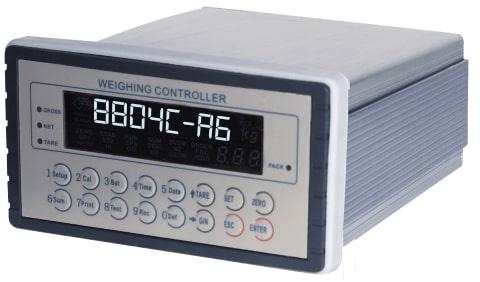

The GM8804C-A6 is an integrated and efficient batching controller extensively utilised in chemical, feeds, concrete, metallurgy smelting and bitumen mixing industry domains. It comes with a multiple hopper application and multiple FIR filters.
This precise batching controller is highly capable of controlling up to six sorts of material batching. It has a single indicator for six materials batching and provides the most consistent and highly accurate outcomes.
The batching controller offers a broad range of communication ports for all categories of applications. It is designed and developed to control batching machines. It has specific dimensions, robust functionalities and is straightforward to operate. It offers auto-zero power and is IP65 Protected.
It comes with effective feeding control, the best electronic calibration, and multiple FIR filters with nine selectable levels. In addition, it is designed with 12 self-defined digital input functions and 15 self-defined digital output functions.
The GM8804C-A6 batching controller can be easily connected to an exterior serial printer, computer or second monitor as per requirements. It supports 18 status indicators in VFD. Optional SIO helps expand the board, backs standard MODBUS and enable RTU Protocol.
Key Features
Product HighLights
| Technical Specifications | |
|---|---|
| Power Supply | 90V～260V AC 50Hz(or 60Hz)±2% |
| Power Consume | 15W |
| A/D CONVERTER | |
| Type | 24-bit Delta-Sigma |
| Analogue input range | 0.2mV to 37mV |
| Linearity | <0.01%FS |
| Gain Drifting | 10PPM/℃ |
| Minimum Sensitivity | 0.5 µV/d |
| Conversion Rate | 120/s |
| Display Accuracy | 1 / 30,000 |
| DISPLAY & KEYBOARD | |
| Main Display 1 | 6 digits, 7 segments, VFD |
| Sub Display 2 | 3 digits, 7 segments, VFD |
| Keyboard | 16 buttons with beeping feedback |
| Status Indicators | (18 indicator in VFD) ZERO, STAB, RUN, SUM, OVER, UNDER, SP1, SP2, SP3, DISC, NZ, FILL, HILIM, HI, GO, LO, LOLIM, HOLD |
| LED Status | Gross, Net, Tare, Pack |
| CALIBRATION & WEIGHING FUNCTIONS | |
| Calibration | By test weight or by electronic calibration |
| Digital Filter | Multiple FIR filters with 9 selectable levels |
| Weighing Functions | zero, zero trackings, auto-zero at power |
| ENVIRONMENTAL | |
| Operating Temperature | -10℃ to 40℃ |
| Storage Temperature | -25℃ to 70℃ |
| Relative Humidity | 90% R.H without dew |
| IP Level | Front panel IP 65 |
| LOAD CELLS | |
| Excitation | 12V |
| Load Cells | Drives 8pcs Load Cells 350Ω |
| MECHANICAL DATA | |
| Dimensions & Weight | 165×181×98 mm (L×W×H) weight approx. 2.5kgs |
| Standard Mounting | Panel Mount |
| Certification | CE |
| Enclosure | ABS front panel, cast aluminium body |
| DIGITAL INPUT | |
| Input Number | 8 |
| Input Functions | (12 Self-defined functions) Start, Stop, Zero, Clear Alarm, Recipe select, Manual discharging, Manual fine feeding, Print, Key locker, Hi-limit, low-limit |
| DIGITAL OUTPUT | |
| Output Number | 12 |
| Output Functions | (15 Self-defined functions) Run, Stop, Fast feeding, Moderate feeding, Fine feeding, Fixed value, Discharging, No.1~No.6 Material. |
| INSTRUMENT WITH ANALOGUE OUTPUT(OPTIONAL) | |
| Type | Isolated 16-bit D/A converter |
| Accuracy | 0.04% |
| Voltage Output | 0-5V /0-10V/-5-5V/-10-10/V |
| Current Output | 4-20mA/0-20mA/0-24mA |
| PRINT FUNCTION | |
| RS232 Port | |
| UART RS232/RS485 INTERFACE | |
| BUS | Standard Modbus RTU |
| CONT | Sending Continuous (General Measure Protocol) |
| READ | Read and Response mode (General Measure Protocol) |
