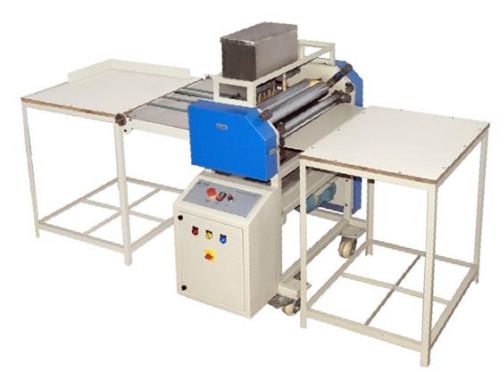

Gluing Machine TG - 55

Listing ID #3803878

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Top gluing machine TG 55 is Two roller top side gluing machine for cold glue. The indigenously designed roller and bottom plate design enables pasting on 70 gsm to 1000 gsm thick paper sheets in same settings. The new TG 55 can glue up to 10 mm thick boards. Glue and feed rollers are easily detachable for cleaning of the machine. TG 55 is virtually maintenance free. Hot glue option available in bottom gumming machine (HG 55).

Application : Back to back pasting jobs, Album making, Board Laminating

Gluing Machine Salient Features

Heavy duty frame structure and wall
Smooth AC drive with variable roller speed
Indigenous roller & returner blade design to carry pasting on 0.07 to 1.0 mm thick materials
Easily removable feed roller and glue roller system to provide full space for cleaning
Glue tank above gluing rollers with knob for required continuous glue input.
Adjustable glue thickness with precise self alignment roller
100 Micron thick hard chrome plated roller/ Stainless Steel rollers (Optional)
Easily removable bottom tray for excess glue collection and reuse.
Best quality control panel components used

Gluing Machine Applications:

Gluing machine for wedding card papers
Glunig machine for tag manufacturing
Gluing machine for back to back pasting
Gluing machine for album making
Gluing machine for board to board pasting
Gluing machine for jewlery box making
Gluing machine for velvet box making
Gluing machine for box making

Hot Melt Top Gluing Machine: (Optional Attachment) Salient Features

Top Gluing Machine TG-55 integrated with optional circulating hot melt attachment for high quality results for making high end and expensive products
Precise digital glue temperature controller
Dual tank heating system for indirect and uniform heating of glue
Inbuilt system for cold glue applications
Very easy cleaning system of rollers
Integrated with high quality & durable piping system for hot glue

Hot Melt Top Gluing Machine Applications:

Hot melt top gluing machine for wedding card papers
Hot melt top glunig machine for tag manufacturing
Hot melt top gluing machine for back to back pasting
Hot melt top gluing machine for album making
Hot melt top gluing machine for board to board pasting
Hot melt top gluing machine for jewlery box making
Hot melt top gluing machine for velvet box making
Hot melt top gluing machine for box making

TECHNICAL DATA (mm)	TOP GLUING TG 55	TOP GLUING TG 75
Max. paper size	500 mm (W) x 810 mm (L)	750 mm (W) x 810 mm (L)
Min. paper size	60 mm (W) x 150 mm (L)	60 mm (W) x 150 mm (L)
Paper thickness	70 gsm To 170 gsm	70 gsm To 170 gsm
Type of glue	Cold	Cold
Motor power	1 HP AC variable drive	1 HP AC variable drive
Max. Speed*	45 m/min	45 m/min
Materials	Paper, laminated paper, plastic coated paper, cloth etc.	Paper, laminated paper, plastic coated paper, cloth etc.
Floor space**	2000 mm (L) x 1000 mm (W) x 1200 mm (H)	2000 mm (L) x 1200 mm (W) x 1200 mm (H)
Hot glue option available in bottom gumming machine. Model: HG 55

Company Details

Mark Engineering is a young company involved in machinery manufacturing for paper printing and post printing industry rooted in the legendary Victor Engineering Works. Parimal Varma and Vasant Varma founded Mark Engineering in 2011. We are team of technically qualified engineers and technicians having years of experience in designing, manufacturing to servicing of printing and post printing machines.
Our motto is to satisfy our customer by making best quality machines which makes difference to our customer and their employees. We believe in manufacturing machines which are technically comparable with the best in the world. From design to after sales service, we meticulously attend every detail to make our machines perfect and most reliable. We passionately build our machines to make them simple, robust, trouble free, with longest running life, low maintenance cost and no down time.
Currently we manufacture feeders, stackers, conveying systems, case binding machines, gluing machines, variable data printing machine sheet transport system, sheet inspection system sheet transport system, SPM Feeders. Feeders and Stackers are customized for client after understanding their in-depth requirements. Please see our product pages for more information.
