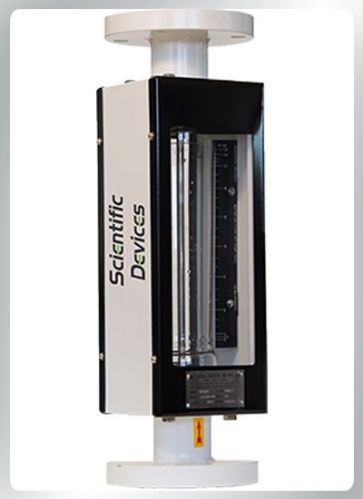

Contact SupplierIt is an instrument used to measure instant flow rate of Liquids and Gases. It is installed in the pipe line vertically upward with flanged or screwed connection.Â
Â
Fluid | : | Liquids & Gases |
Density / Sp. Gravity | : | Up to 2.95 |
Viscosity | : | Up to 200 cp |
Design Temperature | : | Up to 150°C |
Design Pressure | : | Up to 15 Kg/cm² Depending on Model |
Measuring Range | : | 2.5 to 40,000 LPH of Water/Liquid & 0.1 to 750 Nm³/hr of Air/Gas at NTP |
Line Size | : | Up to 4″ NB |
Available Materials | : | MS/CS/SS304/SS304L/SS316/SS316L/PTFE lined MS or SS |
Connection | : | Flanged to ASA/BS/DIN/ Triclover Standard Screwed to BSP/NPT(M/F) |
Accuracy | : | ±2% of FSD & ±1.5% on request |
