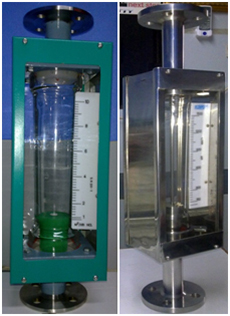

Glass Tube Rotameter

Listing ID #3934854

Get Latest Price

Max PRESSURE7 KG/CM2
Operating PrincipleVariable Area Type
Repeatability 101
ACCURACY.± 2% F.S.Overall, Calibrated at STP
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

GLASS TUBE ROTAMETER is Basically Variable Area Flowmeter the differential Pressure across the annulus area in constant and the flow rate is measured as a function of the annulus area.This areais displayed as the position of a float. Suitable for in line installation with flanged or screwed connections with several options of materials for the wetted parts. Available in the sizes from 1/2" to 4". Available in various Scale lengths 175-200 mm, 250 mm, 500 mm to suit customer requirements

Line size	:	1/2" to 4"
Thread standard	:	Bsp/Npt/Swagelok/push ftting/Nozzle
Flange Standard	:	ASA 150 RF /BS 10 Table D,E,F,/DN,PN
Flange Moc	:	SS316/SS 304/PP/UPVC
Float Moc	:	SS316/ SS 304/TEFLON
Wetted Part Moc	:	SS316/SS 304/MS/Teflon Lining with MS, CS
Bodycasing Side Plates Moc	:	SS 304 with Shining Buffed/MS Epoxy Coated/Aluminium with Two Tone Powder Coated Excellent Finish
Metering Tube Moc	:	Wall Tempered Borosil Taperd Glass of 4.8 MM Wall Thickness Ribbed Type FPG
Gland Packing	:	Silicon, Viton, EPDM, Over wrapping Teflon Cover Cap
Flange to Flange distance	:	450 MM
Scale	:	Milky White Acrylic with Black Screen Printing Letters / Aluminium Anodized / ss Engrawing / Ceramic Ink Etched on Metering Tube
Mounting/Inlet & Outlet	:	Vertical Bottom to Top

Company Details

FLOW POINT INDIA Company opened its doors in 1991 with one major goal:To produce the finest group of rotameters ever sold.
At the time we occupied a 400 square foot space in a Commercial building. With two small manual lathes, a cut-off saw and two drill presses we began production.The product line consisted of a total of 12 model numbers. In our first year of business sales were just over RS.1,57,000.
A lot has changed over the years. We now run two shifts and utilize the most controlled machinery. Flow point currently calls its home a 2,000 square foot facility in ,Mumbai. We now manufacture 95% of the 1000 meter components used in our products. These include the borosilicate glass metering tubes we call FP Glass. We operate an in-house calibration lab and perform F.C.R.I. traceable calibrations (conform to ISA RP 16.6). The Flow Point product line has grown and expanded to satisfy the demands of almost any variable area flow meter application.
We are sensitive to our customer's requirements. In fact nearly all our products were designed in response to customer need with our own exceptional quality and distinctive style.
Did we reach our original goal? You be the judge. The next time you're in the market for rotameters consider Flow point India. I think you'll agree there is no better time than right now to discover the advantages of the Flow Point. After all, when it comes to flow . . . we're instrumental.
