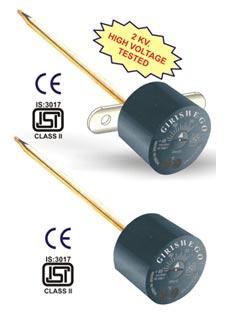

We are engaged in offering Thermostat Switches. The Thermostat Switches are engineered for many years of use. We are Supplier of Girishego Thermostats without Fixing Bracket that are ideal for temperature control of Space Heater, which is used in LT & HT Switchgear & Panel Boards, etc.
Principle Of Operation : With temperature rise, the principle of differential expansion of brass tube and a Nickel/Iron (inver) Rod is used to actuate a highly accurate snap action micro gap switch located in the head which makes it keep the temperature constant within the differential i.e. A single pole, single throw, normally closed circuit breaks (opens) on rise of temperature.
Construction Of Thermostat Switches
The micro gap switch assembly is mounted on a heat resistant base, with rigid brass pillar terminals. Heavy duty Ag CDO contacts are provided for long trouble free life. A thermosetting cover with clear and precise graduations is provided along with a setting knob. Thermostat can be fixed in any position. Two fixing holes of Dia. 5mm are provided at a center distance of 58mm in Thermostat with fixing Bracket model.Â
Availability : These Thermostat Switches are available in standard stem lengths of 7"(175mm), 11" (275mm). Also Available in 110 V & 415
Model No. | Steam Length | Temp. Range | Standard packing | Despatch Packing |
---|---|---|---|---|
Round Shape Thermostat 15 Amp-250V AC | ||||
200-C | 175 mm | 0 – 60 oC | 25 Nos. | 100 Nos. |
*205 – C | 175 mm | 30-85 oC | 25 Nos. | 100 Nos. |
208 – C | 175 mm | 25-125 oC | 25 Nos. | 100 Nos. |
210 – C | 175 mm | 25-150 oC | 25 Nos. | 100 Nos. |
215-C | 175 mm | 50-200 oC | 25 Nos. | 100 Nos. |
*305-C | 275 mm | 25-85 oC | 25 Nos. | 100 Nos. |
306-C | 275 mm | 5-90 oC | 25 Nos. | 100 Nos. |
308-C | 275 mm | 25-125 oC | 25 Nos. | 100 Nos. |
310-C | 275 mm | 25-150 oC | 25 Nos. | 100 Nos. |
315-C | 275 mm | 25-200 oC | 25 Nos. | 100 Nos. |
410-C | 450 MM | 25-150 oC | 25 Nos. | 50 Nos. |
"Popular" Model Thermostats 15 AMP 250 V.A.C | ||||
GEC – 5 | 125 mm | 30-85 oC | 100 Nos. | 100 Nos. |
* GEC – 7 | 175 mm | 30-75 oC | 100 Nos. | 400 Nos. |
* GEC – 11 | 275 mm | 30-75 oC | 100 Nos. | 400 Nos. |
Square (Big) Thermostats 15 AMP 250 V.A.C. | ||||
*GEO – 11 | 275 mm | 30-75 oC | 25 Nos. | 100 Nos. |
Thermal Cut-Out 20 AMP 250 V.A.C. | ||||
TCO – 7 | 175 mm | Seat at 90 oC | 100 Nos. | 400 Nos. |
TCO – 11 | 275 mm | Seat at 90 oC | 100 Nos. | 400 Nos. |
