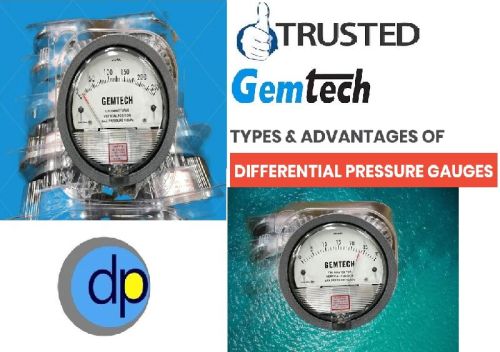

GEMTECH Differential Pressure Gauge in mumbai
Having Vast Experience in The Relevant Industries,We Are Engaged in Providing a Broad Assortment of GEMTECH Gauge that is assemble in order to meet specific Demands of Customers. Moreover, a series of quality tests is performed on offered gauge to ensure a defect free delivery at client’s end. Clients can avail the Offered Range From us at Market Leading Prices within Stipulated time Frame.
Features:
Accuracy
High functionality
Long service life
Specifications:
We provide GEMTECH Magnehelic Gauge of series which is low in cost,diaphragm operated and differential pressure gauge
Owing to these features these are used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%
Besides,these are also applied for monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, cabinet purging and many others
We offer GEMTECH magnehelic differential pressure gauges which run on air and non-combustible compatible gases and are offered with the option of natural gas
In addition to this, these housing are fabricated by using die cast aluminum case and bezel, with acrylic cover
These have exterior finish with grey color to withstand 168 hour salt spray corrosion test
Technical Specifications:
Accuracy: ±2% of full scale (±3% on – 0, -100 Pa, -125 Pa, 10MM and ±4% on – 00, -60 Pa, -6MM Ranges), Throughout Range at 70°F (21.1°C)
Pressure Limits: -20 Hg. To 15 PSIG.† (-0.677 Bar to 1.034 Bar); MP Option
HP Option: 35 PSIG (2.41 Bar), 80 PSIG (5.52 Bar)
Over Pressure: Relief Plug Opens At Approximately 25 PSIG (1.72 Bar), Standard Gages Only
Temperature Limits: 20 to 140°F.* (-6.67 to 60°C)
Size: 4 (101.6 MM) Diameter Dial Face
Mounting Orientation: Diaphragm In Vertical Position, Consult Factory For
Process Connections: 1/8 Female NPT Duplicate High And Low Pressure Taps One Pair Side And One Pair Back
Weight: 1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g)
Other Position Orientations
Applications:
Filter Status
Duct Static Pressure
Clean Room Pressure
Building Pressure
Fan and Blower Pressure
Paint Booths
Dust Collectors
Glove Box Pressure
Bubbler Systems
Cabinet Purging
