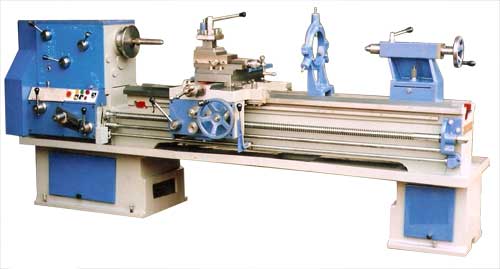

we are specialized in offering international quality geared lathe machines, which are widely demanded. the geared center lathe machines, are available with a rigid and box section type extra double walled configuration. our geared head lathe machines are provided with hardened & ground steel gears, which are mounted on precision spline shafts and offer smooth and excellent performance. they are further equipped with wide bed to provide maximum torsional stiffness. we offer these machines in different models to meet the requirements of different clients. such unbeatable features coupled with unmatched quality make us the best geared head lathe machine exporter from india.
features :
widely demanded by government organizations under the dgs&d rate contracts.comes with a rigid and box section type extra double walled configurationhardened & ground steel gearswide bed to provide maximum torsional stiffnessavailable in different models
| Specifications | KRS-25C/100 | KRS-25C/150 | KRS-25C/200 |
|---|---|---|---|
| Center Height | 250 mm | 250 mm | 250 mm |
| Width of Bed | 325 mm | 325 mm | 325 mm |
| Admit between Centers | 1000 mm | 1500 mm | 2000 mm |
| Spindle Bore | 53 mm | 53 mm | 53 mm |
| No. of Spindle Speeds | 8 | 8 | 8 |
| Range of Spindle | 45-1000 | 45-1000 | 45-1000 |
| Range of Threads | 2-56 TPI 0.5-14 mm 0.125-3.5 Module | 2-56 TPI 0.5-14 mm 0.125-3.5 Module | 2-56 TPI 0.5-14 mm 0.125-3.5 Module |
| Main Drive Motor | 3 H.P | 5 H.P | 5 H.P |
