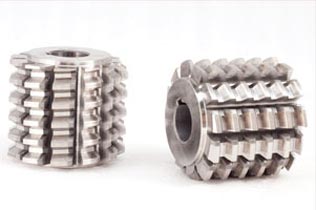

Gear Hobs

Listing ID #562077

The company is a reputed Manufacturer, Supplier and Exporter of Gear Hobs. Gear Hobs provided by us features maximum accuracy. Gear Hobs provided by us are designed to meet specifications, with any type of profile modification like protuberance, chamfering, topping and tip relief. Gear Hobs are supplied in single or multi-starts, generally according to profile DIN 3972 in Class AA, A and B as per DIN 3968. Types of Gear Hobs available with us include Pre Shaving Hobs, Roughing Gear Hobs and Pre Grinding Gear Hobs. Specifications

• Module : 0.1 to 40 (24 mm to 360 mm diameter)
• DP : 120 DP to 0.7

• Spline Hobs are manufactured as per standard and as per specific requirements of the customers, for Straight Sided Splines and Involute Splines.
• Spline Hobs in class 'A', 'AA', 'B' Ground profile
• Involute Spline Hobs as per DIN 5480, 5481 & 5482, NFE 22 141, ANSI B92.1
• Spline Hobs for Power Take off Shafts according to DIN 9611
• Roller Chain Sprocket Hobs are supplied as per ANSI, BS, IS or any other standards or with non-standard forms. These hobs are offered with ground or unground profiles and topping or non-topping designs.
• Timing Belt Pulley Hobs are made to cut various types of Timing Pulleys like

• Syncroflex
• UNIROYAL , Powergrip GT
• HTD
• According to DIN 7721 , ISO 52
