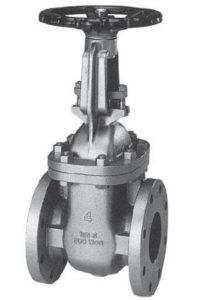

Gate valve

Listing ID #4346916

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

GENERAL MANUFACTURING STANDARD• Sizes 15 to 40mm NB – BS : 5150• Sizes 50 to 1200mm NB – IS : 14846/PD ALT-2• Sizes 50 to 300 mm NB – IS : 780/BS : 5150• Sizes 350 to 1200mm NB – IS :....

View More Details

Send Enquiry

Product Details

GENERAL MANUFACTURING STANDARD
• Sizes 15 to 40mm NB – BS : 5150
• Sizes 50 to 1200mm NB – IS : 14846/PD ALT-2
• Sizes 50 to 300 mm NB – IS : 780/BS : 5150
• Sizes 350 to 1200mm NB – IS : 2906/BS : 5150

END CONNECTIONS
IS 1538/lS : 6392/BS : 10 Table D or E/ANSI 125 or 150/DIN

SPECIAL REQUIREMENTS CATERED FOR
• Valves with all iron construction
• Valves for coke oven gas service
• Valves to ANSI, DIN & other national or international standards
• Valves in M.S. Fabricated/CS/SS construction

OPTIONAL FEATURES :
• Back seat arrangement • Spur / Worm / Bevel gear operation • Integral by-pass arrangement • Thrust Bad-Bearing arrangement • Guide Channel & shoe arrangement • Open & Shut Position Indicator • Drain plug arrangement • Chain & Chain wheel operation • Hand wheel Locking arrangement • Stand post & Extension Rod for remote operation • Electric / Pneumatic / Hydraulic Power Operation.

t No	Description	Material & Specification GM Fittings	Material & Specification SS Fittings
1	Body	CI To IS 210 FG 200	CI to IS 210 FG 200
2	Bonnet	Do	Do
3	Yoke	Do	Do
4	Gland	Do	Do
5	Hand wheel	Do	Do
6	Wedge	Do	Do
7	Wedge Seat	GM to IS 318 GR 2	18/8 SS to AISI 304
6	Body Seat	Do	Do
9	Spindle	13%CRSStoAISI410	13% CR SS to AISI 410
10	Bolts & Nuts	MS to IS 1367	MS to IS 1367
11	Gland Packing	Greased Jute	Graphite Asbestos
12	Gasket	Rubber to IS 636	CAF to IS 2712
13	Yoke Sleeve	GM to IS 318 GR2/Carbon Steel	GM to IS 318 GR2/Carbon Steel

Company Details

PELICAN’s range offers Gate Valve, Non Return Valve, Globe Valve, Diaphragm Valve, Butterfly Valve, Ball Valve, Y Strainer, Pot Strainer Double Beat Valve in choice of Stainless Steel, Cast Steel, Cast Iron & Forged Steel. The Valves are widely used In Steam, Hot Oil, Air, Gas, Water, Chemicals and various other fluid applications In Fertilizer, Power, Steel, Textile, Sugar, Boiler, Chemical, Petro Chemical, Cement & Allied Industries. Our Valves are ranging from 15 mm to 1200 mm sizes In rating ASA 150, ASA 300, ASA 600, ASA 800, DIN ND 16 & DIN ND. /JO, IS 780, IS 2906, IS 5312, IS 933S, AWWA-C-504.
