Gate valve

Listing ID #3896673

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

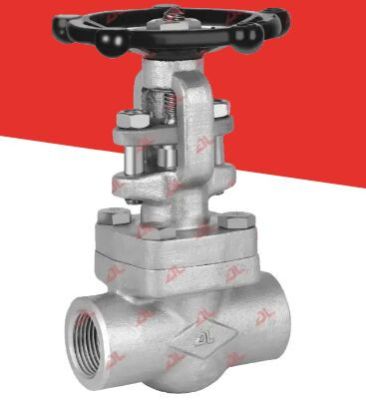

DL Valves Forged Steel Gate Valves are Bolted Bonnet, outside screw and yoke type, rising stem design. DL Forged Valves Body and bonnet made from high quality forgings. DL Valves offer Forged Steel Gate Valves in size 1/2 (DN15) to 2 (DN50) to suit various critical, non-critical applications and pressure rating in 150#/300#/600#/800#/1500#/2500#. DL Forged Steel Gate Valve manufacturing range covers Regular Port and Standard Port both types of Valve. Regular Port Gate valves have fast delivery or ready stock, for Standard Port Gate valve do manufacturing on order basis. DL Valve offer Forged Steel Gate Valve in wide range of Body Materials like ASTM A105 - Forged Carbon Steel, ASTM A 182 F304/F304L/F316/F316L - Forged Stainless Steel,ASTM A 182 F11/F22 - Alloy Steel to suit industrial application. DL Forged Steel Gate Valves are available under any Third party inspection also. For High Pressure & Temperature application Stellited ST6 Face Seat & Gate available. Forged Gate Valve available is Threaded End, Socket Weld End, Butt Weld End and Flanged End Connection. For Flanged End Forged Gate Valve flanges will be a welded with a valve body not integral forged.

Design & Testing International Standard of Forged Steel Gate Valve

Material of Construction (MOC) for Forged Steel Gate Valve

Design Standard	ISO 15761/API 602
Inspection & Testing Standard	API 598
Flange End Standard	ASME B16.5/For Face To Face ASME B16.10
End Connection	Flanged End to ASME B16.5, 150#/300#/600#(FLANGES WELDED/FABRICATED TO BODY) Screwed - Threaded End to ASME B1.20.1 Socket Weld End to ASME B16.11 Butt Weld End to ASME B16.25
Manufacturing Size Range	1/2"(DN15) to 2"(DN50)
Pressure Rating of Valve	150#/300#/600#/800#/1500#/2500#
Valve Operation	Hand Wheel Operated

Body & Bonnet	ASTM A 105 - Forged Carbon Steel ASTM A 182 F304/F304L - Forged Stainless Steel ASTM A 182 F316/F316L - Forged Stainless Steel ASTM A 182 F11/F22 - Alloy Steel
Trims / Working Parts	ASTM A 276 T - 410(SS-410 - 13% Cr. Steel) ASTM A 276 T - 304/304L(SS-304/SS-304L) ASTM A 276 T - 316/316L(SS-316/SS-316L) Stellited - ST6
Gland Packing	PTFE Virgin/Carbon Filled Teflon Grafoil Ring/Graphite Ring
Gasket	SS 304/316 Spiral Wound with Graphite Filled
Bolts/Stud & Nuts	ASTM A 193 GR. B7/B8/B8M/A 194 GR. 2H

Salient Features of Forged Steel Steel Gate Valve	Special Option of Forged Gate Valve	Forged Steel Gate Valve Application
1 Body & Bonnet made from high quality forging. 2 The Forgings are precision machined for high performance 3 Ground Finish Stem 4 Self-Aligning Two Piece Gland 5 Back seating feature facilitates repacking of the stuffing box on line with the valve in fully open position.	1 Other Material of Construction (F304/F316/F304L/F316L/F11/F22) 2 Flanged End, Flange Welded to Body, Rating 150#/300#/600# 3 Butt Weld (Welded Neck)/Socket Weld/Screwed(BSP/NPT) Connection 4 Seat & Disc Stellited ST6 Hard Face 5 Special Trims on Request	1Power Plants & Process Industries 2 Petrochemical Plants & Refineries 3 Fertilizers Plants 4 Process & General Industries 5 Sugar Industries & Distillery Plants 6 Water, Steam, Gas, Oil & other Non-aggressive media 7 Other application on request

Company Details

Established at Rajkot (Gujarat) India, DL Valve is one of the renowned manufacturer and order supplier of a Forged Steel Gate Valve, Globe Valve, Lift Type Check Valve&Swing Check Valve Owing to their high quality features, these are adequately used in for industrial application. These are fabricated from high quality material and are dependable with respect to performance and endurance. Our customers can avail these products from us at the most competent industry prices.
DL Valve is a truly integrated, incredibly fast and intuitive valve manufacturing company. Our variegated range of valves is specially designed for controlling flow of water, gas, air, oil and steam. The perfect combination of quality valves, field experience and technical know-how has enabled for the birth of product innovation that has positioned us in a headship position in the valve industry. We have a highly qualified and motivated team of experts working endlessly for ensuring that our clients are provided with valves that are of premium quality. Our skilled workforce, technological superiority coupled with sophisticated manufacturing facility helps us in delivering end-to-end valve solutions that successfully caters to customers' needs and satisfaction.
As a leading valve manufacturer we are proud in having as our clients the principal organizations in these domains worldwide. We use the best of engineering, quality and ingenuity for coming up with innovative and exceptional valves. No, wonder our products are so much in demand.
Perfection in design, stringent quality checks at every manufacturing stage, unmatchable, performance and prompt after sales service are some of the salient features of our business. DL Valve provide maximum safety, reliability and suitability virtually in all branches of industrial applications.
