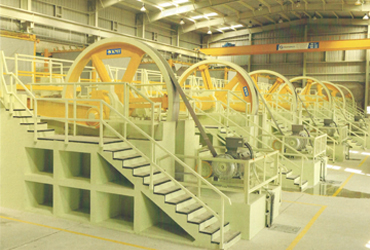

The Gang Saw Structure is built by high quality steel and consisting of four Pillars Fabricated with heavy plates & duly connected and welded with cross Beam to ensure maximum stability and protecting mechanical impact which is subject to during of the marble block.

For SMOOTH AND FAST CUTTING:
The duly stress relieved BLADE HOLDER FRAME accommodates the tensioning of diamond blades up to 14tons each blade. The reciprocating motion is governed by articulated guides/This system reduces to a minimum the problem of friction resulting from the movement of the blade holder frame it greatly reduces maintenance cost because it does not require replacement like the traditional slide ways which are subject to continuously wear.

The blade holder frame is moved by DOUBLE CONNECTING RODS which are placed the blade holder frame movement perfectly rectilinear without any deviation at the both ends of the blade holder frame even when the uneven block on cutting motion and also the advantage of double connecting rods is that all mechanical thrust and energy towards the blade holder frame are equally spread.

The BLOCK TROLLEY PLATFORM heavy plates fabricated structure situated between four pillars and lifted by 90mm dia. LEAD SCREWS and heavy duty G.M.LEAD NUTS attached to the every pillar. The lead screws are work simultaneously which are synchronized with lay shafts and chain system and coupled to auxiliary motors and reduction gear boxes the trolley plat form lifting on TWO PRISMATIC AND TWO PLAIN VERTICAL SLIDES WAYS which are hard chrome plated to protection against rust and durability too. The prismatic slide ways prevent any deviation of lifting away from vertical axis.
