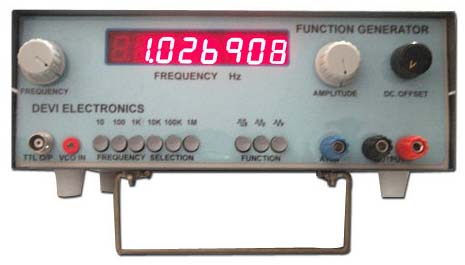

Contact SupplierWe are renowned for supplying a reliable range of Function Generators. We manufacture Function Generators in accordance with industrial standards using the advanced technology. We make available Function Generators that are endowed with microcontroller based 6 digit display. Our Function Generators are highly appreciated for excellent performance and long functional life. Function Generators offered by us are compatible with Sine, Square and Triangle wave frequency range of 1Hz to 1MHz and amplitude of 2mV to 20Vpp. We provide BNC test leads, mains cord, spare fuse, operating manual with Function Generators.
Waveforms | Sine, Square, Triangle. |
---|---|
Output Frequency | 0.1Â Hz to 1 M Hz in 6 ranges variable |
Output Voltage | Variable Voltage 0 - 20V P-P, BNC socket |
Frequency Indication | 8 Digit, Digital Display, 0.5" Height |
Accuracy | +/- 1 % of the selected range +/- 2 counts |
DC Offset | +/- 5 Volts continuously adjustable |
Level Flatness | +/- 2% from 1 Hz to 100 K Hz |
Sine Wave Distortion | 1% Typical |
Square Wave Rise Time | 100 n Seconds at full rated output |
Triangle Linearity Error | 0.5% (for 100 K Hz, 5% to 95%) |
Output Attenuation | 0 dB, 20 dB, 40 dB, 60 dB |
Output Impedance | 50 Ohms |
Power Requirement | 230 +/-10% VAC, 50 Hz, single phase |
Weight | 4.0 Kgs. Approx. |
Note : Supplied with BNC test leads, mains cord, spare fuse, operating manual |
