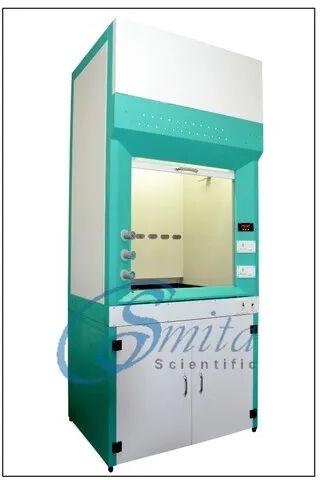

FUME HOOD CABINET

Listing ID #6590712

Sr. No.

Specification

Description

1

Design Structure

Aerodynamic, Floor mounted

2

Overall Fume Hood Dimensions with base cabinet

3

Base Cabinet dimensions:

  L=   -    mm X D= 650mm X H= 700mm

4

Inside Fume Hood working volume:

5

Inside Fume Hood   Interior

Stales steel 304 1 mm thigness

6

Height of worktop from Ground level

850 mm

7

Airflow Type

Low Constant Volume (for A.C. environment)

8

Construction (Exterior)

Anti-corrosive M S Powder coated

Pre-treated with 8 tank chemical processes and powder coated with

highly chemical resistant epoxy Colors having dry film thickness of 70

to 80 microns. Passes all conformity performance tests as per IS

standards.

9

Construction (Interior)

Chemical (especially strong acid like H2SO4 and HNO3) resistant & Heat Resistant, Fire Retardant, Smooth Finish, EasilyCleanable Panels.

10

Front Top Panel

Easily open able hinged Top Panel for easy access to Flow Control

Valve and Electrical Lighting fixtures for maintenance.
