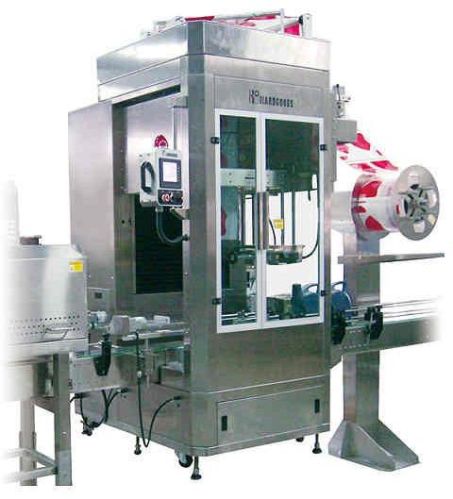

bottle sleeve wrapper
features
 electronic machine controlled by an industrial pc based motion control system for an increased flexibility.
 the machine is built on a strong painted steel frame.
 the feeding conveyor is a pusher type in-feed that carries the product and synchronizes its position automatically with the cross sealing head.
 equipped with a double reel holder for rolls up to 850 mm. wide and 350 mm. in diameter.
 the flexible forming box allows to adapt the film tube to the different products to be packed.
 the longitudinal overlap sealing system is created by an ionizer for shrink-wrap packs, or by means of a hot sealing system for film-wrapping packs.
 the cross seal is created by a long-dwell sealing head system with sealing jaws that are 400 mm. wide. the system is powered by a brushless servomotor.
 the machine includes the "no product - no bag" function as standard. this function avoids creating empty bags while the in-feed conveyor keeps running in a continuous mode and hence optimizing the production.
 the control panel is equipped with a touch screen for the usermachine interface. the screen uses very intuitive menus in a user friendly environment which allows a quick setting and storage of the different parameters.
specifications
feeding style automatic manual
packing style center seal
packing size
length : 70 mm to 300 mm
width :30 mm to 180 mm
height: 3mm to 100 mm
packing material all types of lamination
production output
approx. 40 to 120 pouches @ mns.
(depend upon the packing size)
power required
motor: 1.5 h.p. dc with dc drive
voltage: 220 volts
phase: single phase
load: 3 kw
machine dimension approx. 1080 x 1700 x 1800 mm
weight
