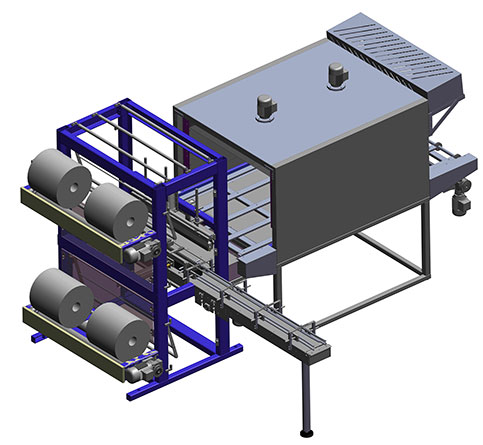

Fully Automatic Shrink Wrap Machine with Duel / Twin output

Listing ID #3825202

Get Latest Price

Supply Type Manufacturer, Exporter
Preferred Buyer Location All over the world

The Fully Automatic Shrink Wrap Machine with Duel / Twin output are more useful for high productivity and high speed.As shrink-wrap machine name itself describes twin / duel output so there will....

View More Details

Send Enquiry

Product Details

The Fully Automatic Shrink Wrap Machine with Duel / Twin output are more useful for high productivity and high speed.
As shrink-wrap machine name itself describes twin / duel output so there will be two pneumatic pushers for shrink wrap matrix forming.
Size of pusher will be designed with respect to required matrix / collation and there will be shrinked outputs from shrink tunnel.
As in this duel output shrink wrap machine there will 4 shrink wrap film rolls 2 on upper feeder and 2 on lower feeder.
The other operations remain same as that of single station shrink wrap machine with 90 degree OR of straight feeder option.
If the collation matrix of single line then 90 Degree OR straight horizontal type collation method will be used and if the required matrix of more in columns than vertical 90 Degree method or straight option will be used.
The products will travel in a single line for shrink wrapping operation, once both the sensors of pushers gets on the matrix forming operations initiates and accordingly the required matrixes started creating
A pneumatic pusher collates the boxes / containers into the pre-selected pack formation, which upon completion is transferred into the web sealer area of shrink wrapping unit for welding.
Once the cutting and welding operation completes in web-sealer area, the pusher returns to prepare the next collation of product.
As the welding bar ascends, the pusher advances to transfer the new collation into the welding position, at the same time displacing the previously wrapped collation onto continuously moving shrink tunnel conveyor.
The wrapped collation soon enters the shrink tunnel chamber where re-circulated hot air causes the wrap to shrink and tightly conform to the contours of the contents.
Once the pack is out of the hot chamber, forced air cooling is used to tighten sleeve wrap to achieve a strong, secure pack ready for stacking on pallet or a placing on a shipping carton.
