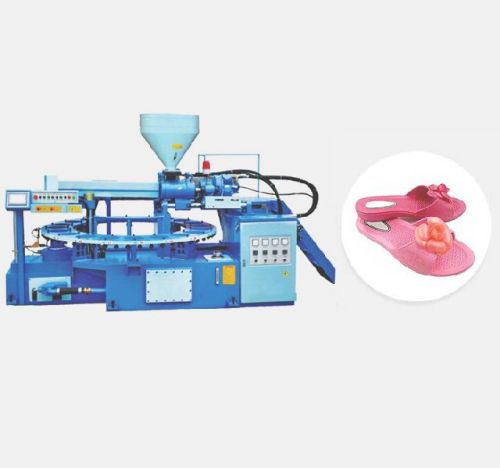

Fully Automatic Rotary Air Blowing

Listing ID #4385897

12 Lakh - 18 Lakh / piece

Get Latest Price

Country of OriginIndia
Supply Type Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

The machine can manufacture various types of plastic & air blown soles for slippers and sandals. PLC controlled. Easy to operate. The raw material can be recyled and the quality of the products is nearly equal to new material. After blowing and foaming, the product is light, soft and smooth faced wity over 60% foamed rate. Integrated oil tank takes less space. Man machine interface is easy to operate.

View More Details

Send Enquiry

Product Details

The machine can manufacture various types of plastic & air blown soles for slippers and sandals.
PLC controlled.
Easy to operate.
The raw material can be recyled and the quality of the products is nearly equal to new material.
After blowing and foaming, the product is light, soft and smooth faced wity over 60% foamed rate.
Integrated oil tank takes less space. Man machine interface is easy to operate.

Specification	Units	TechRot
Work Station	Station	24
Injection Screw Diameter	Mm	65
Max. Injecting Capacity	Cm³/Shot	660
Clamping Force	Ton	55
Max. Injection Pressure	Kg/Cm²	890
Productivity per hour	Pair/h	130
Mould Dimension	Mm	480x320x300
Total Power	Kw	31.5
Machine Dimensions(LxWxH)	M	4.29x4.7x2.175
Machine Weight	Ton	5.5
Oil Capacity	L	600

Product Images

Company Details

Technocrat Moldings Are Engaged In Manufacturing Footwear-Related Machinery To Manufacture TPR/ TPU Soles, PVC Soles, Shoe Last Making Machine, Apart From This We Also Manufacture Paver & Tile Mold Molding Machine And Other Footwear Components.
We also manufacture TAP TAP TUP TUP machine. We also manufacture Air Blown, Airmix, Lightweight, Airfoam, PCU Expanded TPR TE Sandal Slipper Sole Machines.
Our manufacturing facilities are equipped with the latest precision tools and the latest machine to roll out a flawless product.
Our engineering jobs are done on imported machines and the very best hydraulics and electrical are incorporated in the machines.
We have been making world-class unit sole molding machines to process TPR, PVC & TPU material. We manufacture extrusion type as well as screw piston injection type machines.
We at Technocrat Mouldings believe that the growth of the company depends on the faith and belief of our customers in our products and services, which has helped us in building a unique repeat-order customer base.
By means of advanced technology, the most outstanding products, and our passion for quality, we deliver high-performance solutions to meet your individual needs.
