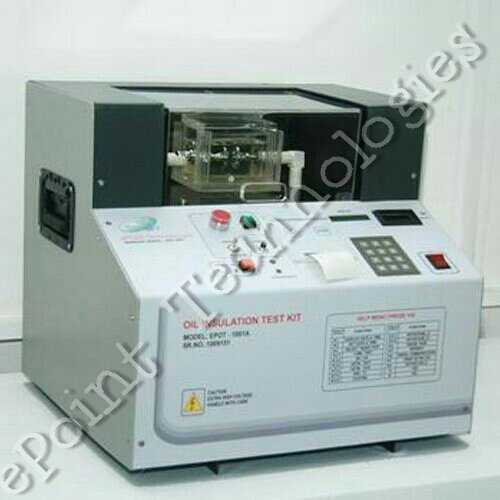

Fully Automatic Oil Insulation Test Kit

Listing ID #1958967

With the assistance of our modern transportation facilities, we are able to deliver the orders on time. Packaging of products is as important as designing and manufacturing, and we have upgraded machines, assistance of our packaging experts to meet the standard as well as tailored packing needs of the clientele.

Features :
    Microprocessor controlled fully automatic oil test sets / Oil Testing Kit.
    Easy operation- Fully automatic test cycle along with average BDV display.
    Tests up to 60 KV , 80 KV, 100KV with accuracy of 3 %.
    Test to- IS 6792, IEC 156,ASTMD 877, ASTMD 1816, UNE 21 etc.
    Option to set- Stand time, Stir time, Rate of rise of Voltage (0.5 KV to 5 KV in 5 steps)
    Built in printer.
    RS -232 Interface with PC (Optional)
    Indicators for- HV ON , HV OFF, All safety Interlock to avoid shock
Safety Features :
    Zero start facility for HT
    Open ground Interlock (Double ground)
    HT Chamber Interlock.
Technical Specifications :
    Power Supply - 230V AC, 50 Hz Single phase
    Output Voltage Range - 0 to 100 KV AC
    Indication - 3 ½ Digit panel Meter in Manual Mode. Alpha Numeric LCD Display in Auto Mode
    Resolution - 100V
    Accuracy - +/- 3% of the FSD +/- 2 Digits
    Tripping Time - Less than 20 millisecond.
    Printer - 24 column, Impact dot matrix printer.
    Controls - Auto/ Manual Mode.Toggle switch for Increase and Decrease the Voltage.Push type switch for stirring.
    Dimension - 525X465X455 (Appx)
    Weight - 55 Kg (Appx)
    Accessories - Oil Vessel (Transparent Acrylics ) with Mushroom type electrodes as per IS 6792
    GO-NOGO gauge for electrode gap adjustment (2.5 mm)
    Cylindrical Electrodes & Spherical Electrodes (Optional)
