EXTRA EQUIPMENT :
Boring Bars with appropriate bearings, cones, extra supports and cutters 22 x 1300 mm and 60 x 2500 & 3000 mm
Into-Bore Gauge (for measuring without removing boring bar) 35-105 mm and 100-210 mm
Tool Grinder
Extra Cutter Heads for 30 mm & 48 mm Boring Bars
Extension for Boring Bar 260 mm
Small Busing for extra support (specify diameter of boring bar)
Boring Bar Sag Checking Attachment
Bpring Bar Hand Feed Remote Control
Boring Bars with appropriate bearings, cones, extra supports and cutters 22 x 1300 mm and 60 x 2500 & 3000 mm
Into-Bore Gauge (for measuring without removing boring bar) 35-105 mm and 100-210 mm
Tool Grinder
Extra Cutter Heads for 30 mm & 48 mm Boring Bars
Extension for Boring Bar 260 mm
Small Busing for extra support (specify diameter of boring bar)
Boring Bar Sag Checking Attachment
Bpring Bar Hand Feed Remote Control
SPECIFICATIONS
Model
AMI - 1500
AMI - 2500
Maximum Length of Block
1550 mm
2600 mm
Distance from Built-in Parallels to Boring Bar
Maximum
815 mm
815 mm
Minimum
515 mm
515 mm
Boring Capacity
- With standard boring bars
34 - 150 mm
52 - 225mm
- With extra boring bars of 22 mm and 60 mm dia
26 - 225 mm
Spindle Speeds (rpm)
Infinitely variable from 50-750 rpm in two steps
variable from 50 - 750 rpm in two steps
Feed: Both Directions (Automatic and manual)
Roughing
0.15 mm
0.15 mm
Finishing
0.04 mm
0.04 mm
Maximum Travel of Boring Bar
325 mm
325 mm
Additional Travel with Extension Bar (extra equipment)
260 - 325 mm
260 - 325 mm
Drive Motor (440V, 50tn) Three Phase
1.5 HP
1.5 HP
(other standard voltages available on request)
Length of Machine
3550 mm
4850 mm
Width of Machine
760 mm
760 mm
Width of Bed
570 mm
570 mm
Maximum Height of Machine
2200 mm
2200 mm
Work Space required
5050 x 1760 mm
6000 x 1760 mm
Net Weight
1700 kg (approx.)
2200 kg. (approx.)
Gross Weight
2200 kg (approx.)
2850 kg. (approx.
Company Details
Atlas Machines (India) was incorporated in 1975 with a single focus; service the needs of the quality conscious buyer with impeccable heavy engineering & infrastructure solutions. Since then, the well-respected company has expanded its horizons. Our product portfolio now includes over 300 cutting-edge products that meet various requirements & specifications. Atlas Machines also has presence in the global markets, and exports Machinery & Equipment World Wide. With nearly 4 decades of hands-on experience in working with the absolute best in the engineering and infrastructure space, Atlas Machines has acquired unparallel expertise in the field supply and Exports of Machines, Machine Tools & Accessories and now is one of the best in its field. The Atlas Team loves challenges and has a solid track record of commissioning machinery in the most geographically and socially hostile environments. Areas of Customer Base/Supply: By serving the Government Depts. such as Naval, Air Force, Ordinance Factories and other Government Undertaking Technical Colleges, Sugar Factories, Multinational Companies, Small Scale Workshops World Wide, we hope to serve you as we serve them with the same fervor. Our Mission & Customer Orientation: Apart from our regular products, we also cater specific need of our clients by assisting them to procure Machinery & Equipment as desired by their technical dept. in different categories of the industry. We are definitely the ones who would go out of our way to satisfy our customers every need. It goes with out denial, that we are a customer service oriented company. We request you to go browse through our website and furnish us with your requirements for Machines, Machine Tools & Accessories; enabling us take care of the same.
Nature of Business Manufacturer / Exporter / Supplier / Retailer
Tell us your Buy Requirement to Get Instant Response
Tell us what you need?

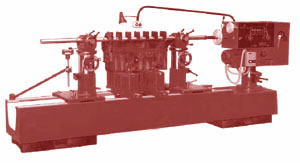

Looking for Fully Automatic Horizontal Line Boring Machine?
