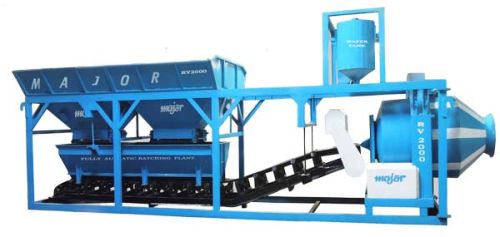

Contact SupplierWe specialize in manufacturing and supplying Fully Automatic Batching Plant. It is fabricated by a team of diligent engineers in accordance with the demands of construction industry. Offered Fully Automatic Batching Plant is highly efficient, robust in design and reliable for a long lasting performance. We used supreme-grade components in order to fabricate this plant as per the clients specifications. It is highly demanded by the patrons owing to its high operational accuracy, enhanced productivity and automatic operations.
RV-2000 | |
Charging Capacity | 800 |
Production Capacity | 18 |
Max Aggregate Capacity (m3/h) | 40mm |
Cycle Time (S) | 120 |
Conveyor Motor | Power (HP) 2 |
Pump | Power (HP) 5 |
Cement Screw | Power (HP) 2 |
Air Compressor | 2 HP |
No, Hopper Bin | 4 |
Bin Capacity | 6 CU |
Dimensions | 9300 / 2400 / 3200 |
Length / Width /Height |
RV 2500 | |
Charging Capacity | 1050 |
Production Capacity | 225 |
Max Aggregate Capacity (m3/h) | 50mm |
Cycle Time (S) | 120 |
Electric Motor | Power (HP) 20 |
Conveyor Motor | Power (HP) 7.5 |
Pump | Power (HP) 2 |
Cement Screw | Power (HP) 9 KV |
Air Compressor | 2 HP |
No, Hopper Bin | 4 |
Bin Capacity | 10 CU |
Dimensions | 10300 / 2800 / 3400 |
Length / Width /Height |
RV 3000 | |
Charging Capacity | 1400 |
Production Capacity | 30 |
Max Aggregate Capacity (m3/h) | 80mm |
Cycle Time (S) | 120 |
Electric Motor | Power (HP) 25 |
Conveyor Motor | Power (HP) 10 |
Pump | Power (HP) 3 |
Cement Screw | Power (HP) 12.5 KW |
Air Compressor | 3 HP |
No, Hopper Bin | 4 |
Bin Capacity | 14 CU |
Dimensions | 11000 / 3200 / 3600 |
Length / Width /Height |
