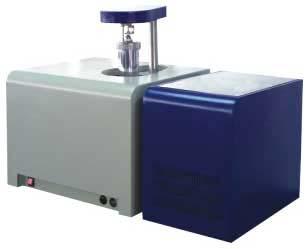

Contact SupplierWe are offering full automatic calorimeter.
it is applicable in the industry such as electrical power, coal, papermaking, petrochemical, cement, farming, medical research, and instruction to measure the caloric value of combustible materials.
Specifications
model : sle-zr/g
calorimeter type : isoperibol, isothermal
temperature testing range :5°c~40°
temperature resolution : 0.0001°c
precision : rsd≤0.1% (isothermal mode & precision mode)
testing time : (predictive mode) 5 min
(isotherm mode) 8 min
(precision mode) 8 min
power supply : 100 ~260v, 50/60hz
power : ≤1.5kw
dimension : 730mm×420mm×450 mm
weight : 65kg
features
1. With the special multi-sensors technology, the temperature of inner bucket, outer bucket, ambient, controlling water tank, can be timely monitored.
2. Three testing modes for alternative: predictive mode (isoperibol), precision mode (isoperibol), and isothermal. The built-in heater & cooler can maintain the temperature of outer bucket at a constant level, or keep the temperature of outer bucket changing with ambient. So the ambient temperature variation has little influence on the testing results.
3. Configured with cycling stirring facility, the outer bucket keeps a uniform temperature. So the testing results more reliable.
4. Equipped with the latest oxygen , auto oxygen filling facility, and auto elevating system. All the work the operator need to do is to put the sample-filled oxygen on the pothook, then it will automatically descend to the set position and fill oxygen. After the experiment, the oxygen will automatically ascend and let the exhaust gas out of the laboratory, so the laboratory can be kept clean.
5. All the processes in the experiment are automatic, there is no need to fill oxygen, relief air, measure water, adjust water temperature. So the workload is greatly reduced.
6. Probe-type electronic measuring cup is used to measure the inner bucket water, repetition error is less than 0.5g, so the water quantity is more accurate and the testing time is shorter.
7. With the high-efficiency magnetic force churning facility, the water in the inner bucket convect more quickly, so the main testing period is more stable.
8. The special auto stop and auto draining joints are equipped to change the water. When the drainpipe is connected, the instrument discharge water; when the drainpipe is taken off, the water will stop effusing.
9. Using the advanced pci technology, one computer can control 1-4 calorimeter buckets or other instruments, thus to make up synthesized testing instrument.
10. Completely support windows systems; high stability; can link electronic scale and share data in long distance through network.
