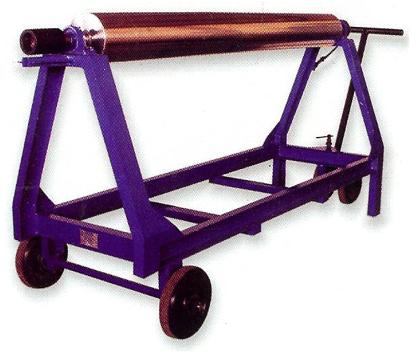

Frame trolley

Listing ID #3989229

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are one of the leading manufacturer and exporter for A Frame Trolley. We are offering best quality raw materials to fabricate the textile machinery. Our trolley is used in textile fabrics and....

View More Details

Send Enquiry

Product Details

We are one of the leading manufacturer and exporter for A Frame Trolley. We are offering best quality raw materials to fabricate the textile machinery. Our trolley is used in textile fabrics and supply at nominal price.

OPTIONAL EQUIPMENT:

A - Frame of M.S. Structure of 4"x2" (100 x 50 mm) channel with two fixed wheels of 12"x3" (305 x 76.2 mm), no locking bar, two legs resting on the floor, pin provision for batch towing operation.
M.S. batching roll with through shaft for 2000 mm roller width
SS 304 quality cladding on the batching roller
Independent geared motor drive to batching roller as per speed requirement, with guard.
Provision of mounting bracket for motor drive and / or suitable adaptor for batch rotation station.
Provision of a coupling to connect a hydraulic drive
Hydraulic power pack, with hydraulic motor
UCP 21 0 pedestal with bearing or tilting bearings
Oversize batching rollers for high load carrying capacity

SALIENT FEATURES:

Top Quality Materials:

Construction with round structural steel tubing, allows highest weight util isation with lowest frame weight.
Oversize pedestal bearing and high quality wheels allow high roll weight.

Easy To Operate:

Transport around the plant is possible with very low operator effort
Handles and locking bars are provided at both ends, for convenience of operation.

Model	Cloth Width	Roller Width (W)	*Roller Diameter (D)**	Limiting Load Kg.	Overall Dimension (mm) L x B* x H*
BRC 160	1600	1800	215	5000	2370 x 960 x 1320
BRC 180	1800	2000	215	5000	2570 x 960 x 1320
BRC 200	2000	2200	215	5000	2770 x 1060 x 1320
BRC 240	2400	2600	215	5000	3170 x 1060 x 1320
BRC 280	2800	3000	215	5000	3570 x 1060 x 1348
BRC 280 H	2800	3000	270	7500	3570 x 1060 x 1320
BRC 300	3000	3200	215	4000	3770 x 1060 x 1320
BRC 300 H	3000	3200	370	7500	3770 x 1060 x 1348
BRC 320	3200	3400	215	5000	3970 x 1060 x 1320
BRC 320 H	3200	3400	270	7500	3970 x 1060 x 1348
