Foundation Grout for Static Loads

Listing ID #4270081

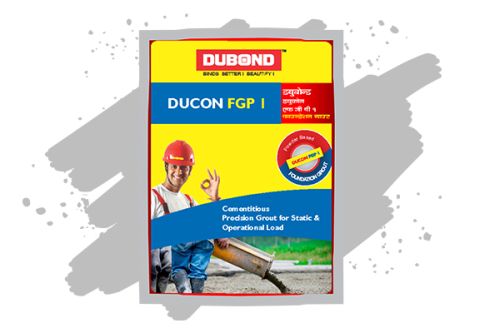

Dubond’s Ducon FGP 1 is supplied as a ready to use dry powder, requiring only the addition of water to produce a free-flowing, non-shrink grout. The material is blend of specially processed cement, pre graded fillers and additives which impart : Good early and final strengths due to very low water requirement Controlled expansion to retain the original volume filled even after setting Free flow characteristics without any segregation and bleeding. Non-shrink, free flow, general purpose cementitious grout Ducon FGP 1, on setting will have a micro-cellular structure with high frost, fire and oil resistance
Uses

• Ducon FGP 1 is used for effective support beneath load bearing units especially where static and operational loads apply.
• Also as an efficient medium for transferring all operational loads to the foundation.
• For free flow grouting of machine base plates, crane and transporter rails, standing equipment bed plates, stanchion bases, steel rolling mill beds, pump sets etc.

Advantages

• Non-shrink - Will continue to occupy the filled space without shrinkage.
• Continues to provide support to the bearing areas and dampens vibration.
• Free flow - Ensures high level of contact with load bearing area. Also helps complete filling without voids. No need for external aids like rodding, poking, chaining etc.
• Pre-packed and factory controlled - Consistency and reliability ensured. Site batching and blending variations eliminated.
• Iron free - No chance of deterioration by uncontrolled rust expansion, corrosion and staining of grout.
• Chloride free - Does not cause corrosion of machine parts, anchor bolts etc.

Preparation
Foundation Surface The substrate surface must be free from oil, grease or any loosely adherent material. If the concrete surface is defective or has laitence, it must be cut back to a sound base. Bolt Pockets Depending on the size of the bolt pockets, 50-100% cleaned 10 mm sound aggregates by weight of grout consumption may be incorporated to economies on grout and also to keep the heat of hydration low. When the thickness exceeds 100 mm-150mm our technical department may be contacted for advise. There must be at least 12 hours gap between bolt pocket and under base place grouting sequence. Pre-soaking Several hours prior to placing, the concrete substrates should be saturated with clean water. Immediately before grouting takes place any free water should be removed with particular care being taken to blow out all bolt holes and pockets. Base plate It is essential that this is clean and free from oil, grease or scale. Air pressure relief holes should be provided to allow venting of any isolated high spots.
Levelling shims
If these are to be removed after the grout has hardened, they should be treated with a thin layer of grease.
Formwork
The formwork should be constructed to be leakproof. This can be achieved by using foam rubber strip or mastic sealant beneath the constructed formwork and between joints. In some cases it is practical to use a sacrificial semi-dry sand and cement formwork. The formwork should include outlets for pre-soaking. Unrestrained surface area
This must be kept to a minimum. Generally the gap width between the perimeter formwork and the plate edge should not exceed 150mm on the pouring side and 50mm on the opposite side. It is advisable, where practical, to have no gap at the flank sides.
Mixing
For best results a mechanically powered grout mixer should be used. When quantities up to 50kg are used, a slow speed drill fitted with a high shear mixer is suitable. Larger quantities will require a high shear vane mixer. Do not use a colloidal impeller mixer. To enable the grouting operation to be carried out continuously, it is essential that sufficient mixing capacity and labour are available. The use of a grout holding tank with provision to gently agitate the grout may be required Consistency of grout mix :
The quantity of clean water required to be added to a 25kg bag to achieve the desired consistency is given below:
Flowable
4.75 liters The selected water content should be accurately measured into the mixer. The total content of the Ducon FGP 1grout bag should be slowly added and zontinuous mixing should take place for 5 minutes. This will ensure that the grout has a smooth even consistency.
Placing
At 30˚C place the grout within 20 minutes of mixing to gain full benefit of the expansion process. Ducon FGP 1can be placed in thicknesses up to 100mm in a single pour when used as an under plate grout. For thicker sections it is necessary to fill out Ducon FGP 1grout with well graded silt free aggregate to minimize heat build up. Typically a 10mm aggregate is suitable. 50 - 100% aggregate by weight of Ducon FGP 1 can be added. Any bolt pockets must be grouted prior to grouting between the substrate and the base plate. Continuous grout flow is essential. Sufficient grout must be prepared before starting. The time taken to pour a batch must be regulated to the time to prepare the next one.
Typical hopper system
Removable hopper : For large pours the grout may be hand placed or pumped into a removable hopper ( trough). Pouring should be from one side of the void to eliminate any air or pre soaked water becoming trapped under the base plate.  It is advisable to pour the grout across the shortest distance of travel. The grout head must be maintained at all times so that a continuous grout front is achieved. Where large volumes have to be placed Ducon FGP 1 grout may be pumped. A heavy duty diaphragm pump is recommended for this purpose. Screw feed and piston pumps may also be suitable.
Curing
On completion of the grouting operation, exposed areas should be thoroughly cured. This should be done by the use of Hydrobuild CC Wax curing membrane, continuous application of water and/or wet hessian.
Cleaning
Ducon FGP 1 grout should be removed from tools and equipment with clean water immediately after use. Cured material can be removed mechanically.
