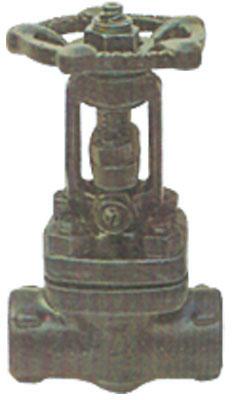

Forged Steel Globe Valves

Listing ID #1832531

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Ashish Enterprise is a famous Exporter and Supplier of Forged Steel Globe Valves in Indore. We provide high quality Forged Steel Globe Valves that are ideal for steam lines, oil, air & gas. These Forged Steel Globe Valves are either Teflon Seated or Neoprene Seated. All their parts like body, bonnet, gland nut, gland, and disc nut are made of premium materials.

View More Details

Send Enquiry

Product Details

Specifications

Parts	Material	Standard
Nut	M. S.	---------
Washer	M.S.	---------
Hand Wheel	M.I.	IS 14329
Yoke Bush	S.S.	AISI 410
Bonnet	CARBON STEEL	ASTMA105
Spindle	S.S.	AISI 410
Nuts For Gland	C.S.	--------
Gland Flange	CARBON STEEL	ASTMA 105
Gland Follower	S.S.	AISI 410
Screw	C.S.	--------
Packing	GRAPHITED	--------
Gasket	C.A.F.	ASBESTOS
Valve Disc	S.S.	AISI 410
Body	CARBON STEEL	ASTMA 105
Seat Ring	S.S.	AISI 410
Locking Screw	S.S.	AISI 410
Gland Eye Bolts	S.S.	AISI 410
Washer	M.S.	--------
Studs	H.T. STEEL	ASTMA 194 Gr 2H or E N - 8
Nuts	ALLOY STEEL	ASTMA 193 Gr B7 or EN - 19 A

Dimensions Area In Mm

Sizes	OD	L	H	OW	A
15 mm	34	80	145	76	1/2" NPT
20 mm	41	88	155	76	3/4" NPT
25 mm	49	100	185	86	1" NPT
32 mm	58	130	228	152	1 1/4" NPT
40 mm	65	147	250	152	1 1/2" NPT
50 mm	80	171	280	152	2" NPT
