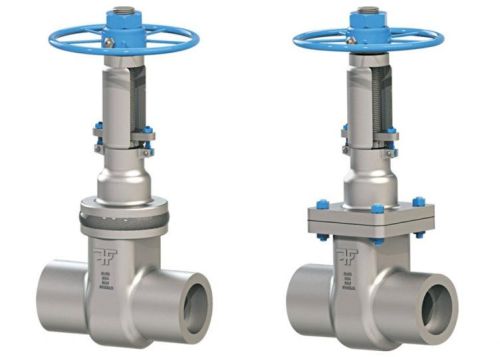

Forged Steel Gate Valve

Forged Steel Gate Valve

Listing ID #4262450

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Design Features A compact but extremely sturdy design for high pressure temperature service. Solid CoCr alloy wedge (optional) ensures low friction and long service life. For Class 1500 valves and....
View More Details
Send Enquiry

Company Information

Forxar Industries Pvt Ltd. verified-icon
Palghar, Mumbai, Maharashtra
View Number
  • Member Since 7 Years
  • Nature of Business Retailer
  • Year of Establishment 2015

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

Design Features

  • A compact but extremely sturdy design for high pressure temperature service.
  • Solid CoCr alloy wedge (optional) ensures low friction and long service life.
  • For Class 1500 valves and for steam service , seats are seal-welded to the body.
  • Packing rings are precompressed to 4000 psi to provide a high intergrity seal.
  • For welded bonnet valves, the bonnet is threaded in and torqued to an engineered value and the body bonnet joint is strength welded, offering double protection against leakage. (body/bonnet threads and strength-weld).
  • Fully guided wedge reduces wear on seating surfaces.
  • Repairable 2-piece stem drive.



Optional Features (Special Applications)
  • A special design is also available with double packing, leak-off connection, live-loading and a packing blowout for easy removal of old packing.
  • Bolted Bonnet gate valves for alkylation service.
  • Parallel slide gate valves.
  • API 603 NPS 1/2 – 1 1/2 (DN 15-40), for ASME Classes 150, 300 and 600.


Part Standart Materials Part Standart Materials
Body A105 Gland Gr. 416 (stainless)
Bonnet A105 Packing Graphite
Gasket Gr. 304 (stainless & graphite) Gland bolt Gr. B6
Packing Flange A105 Gland nut Gr. 2H
Seat Gr. 410 (stainless) HF CoCr alloy Cap screw Gr. B7
Wedge CA 15 HT or CoCr alloy Handwheel Malleable iron
Stem Gr. 410 (stainless) Handwheel nut Steel
Stem nut Gr. 416 (stainless) Handwheel lockwasher Steel
Yoke bushing 12L14 steel Name Plate Aluminum
