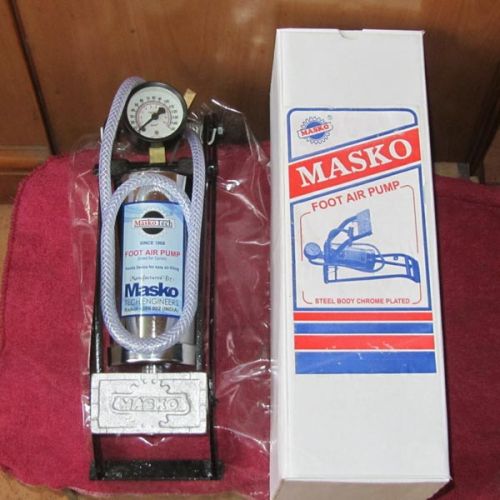

Foot Air Pump

Listing ID #919088

Get Latest Price

Supply Type Exporter
Preferred Buyer Location All over the world

A Handy Device in light weight for easy & fast Air filling in bicycle, all types of two wheelers, four wheelers and thereby useful to maintain all time required air pressure for saving in fuel as....

View More Details

Send Enquiry

Product Details

A Handy Device in light weight for easy & fast Air filling in bicycle, all types of two wheelers, four wheelers and thereby useful to maintain all time required air pressure for saving in fuel as well longer life of tyre. Also useful for other pneumatic requirements.
Salient Features

All foot pumps are tested fully prior to despatch likewise smooth working of foot pump, perfect working of pressure gauge, etc.
Masko Brand Foot air Pump (Steel body) with 1 mtr. Long air fill rubber pipe & with extra washer, spring, nozzle bush and special brass adapter (Nipple) for cycle.
Also available with Nylon body, in two sizes big and small.

Technical Specifications

Type of Foot Pump	Steel body	Nylon body	Nylon body (small size)
Pump size	350 x 105 x 100mm	325 x 105 x 100 mm	275 x 85 x 95 mm
Pump size (with box)	355 x 115 x 115 mm	355 x 115 x 115mm	280 x 110 x 100mm
Pump weight	2.350 kgs.	1.550 Kgs.	1.100 kgs.
Cylinder inside dimensions	70 mm dia – 145 mm long	62 mm dia – 122 mm long	49 mm dia – 106 mm long
Max. Stroke length	118 mm	100mm	89 mm
Max. Air volume delivered/stroke	454 cm3	305 cm 3	170 cm 3
Pressure Range	0-10.6 kg./cm2 (0 to 150 Lb/inch2)	0-10.6 kg./cm2 (0 to 150 Lb/inch2)	0-10 kg/cm2 (0 to 150 lb/inch)
Max. Error in gauge reading	+0.140 kg/cm2 (+2Lb/inch2)	+0.140 kg./cm2) (+2Lcb/inch2)	+0.140 kg./cm2 (+2Lb/inch2)

Note : All dimensions & designs shown in this catalogue are subject to alteration or changes without prior notice.
