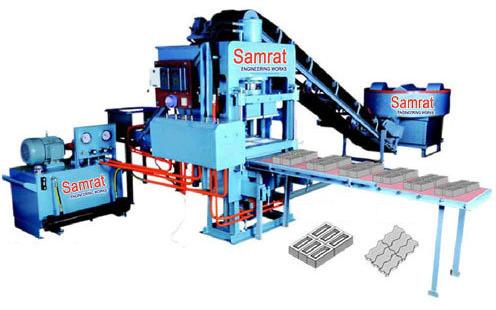

Fly ash brick making machine

Listing ID #392367

Manufactured with the latest technology, our fly ash brick making machine is widely appreciated for its high pressure tonnage. The vibration and pressing systems of fly ash brick making machine help in producing great compaction and strength. Our fly ash brick making machine is compact in design and essentially helps in cooling down oil with the oil cooling system in it. The fly ash brick making machine has electrical and mechanical interlock system, which help in safe working. Avail this custom made fly ash brick making machine at affordable prices. features :

• maximum high pressure tonnage 60 (415 volts)
• power required 17 h.p
• manufacturing capacity fly ash bricks : 6pcs. In one operation
• material is given manually in single feeder
• ply-wood pallet size 535 m meter x 445 m meter x 19 m meter
• material & finished product is discharged through bearing conveyor
• pallet feeder - pallet feeder back side of machine
• production in shift of 8 hours fly-ash bricks : 5000 to 9000 pieces.
• bricks size :
  • 230 x 110 x 80mm 9000pieces.
  • 90 x 90 x 90mm 9000 pieces.
  • 230 x 150 x 80mm 6000 pieces.
  • specifications :
    • concrete paver blocks single layer unit stone 220 x 110 x 100mm 9000 pieces.
    • production area 450 mm x 350 mm x 120 mm
    • oil tank capacity 200 liters
    • machine size press machine : 250cm x 130cm x 198cm
    • power pack : 107cm x 97cm x 52cm
      general technical information :
      • hard chrome piston
      • wipe on cylinder top
      • compaction and strength is generated through vibration and pressing systems
      • oil cooling system cools down oil even when the press is working
      • shining smooth finish
      • safe working conditions
      • six workers required for total production process
      • custom made higher tonnages & brick
      • standard brick size is 230 x 110 x 80 mm
      • only the manufacturer can present alterations in brick like specification, weights & volume which are approximate
      • the capacity of machine is only for guidance.
