- Size RangeX1 to 6X8
- Flange DrillingANSI B 16.5 / BS 10 Table / DIN / IS 6392
-
Supply Type
Manufacturer, Exporter, Supplier
-
Preferred Buyer Location
All over the world

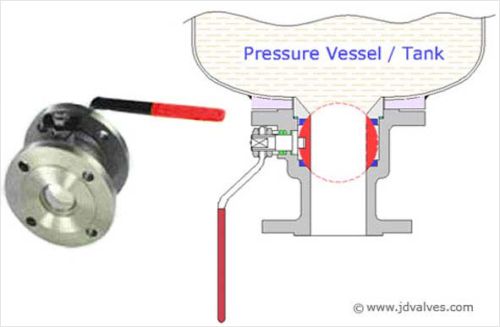

Flush bottom valves, Generally Flush Bottom Ball Valve body is modified by adding Inlet oversize flanges. As example: 2" x 3" Flush Bottom Ball Valve has the nominal bore of 2" (DN 50), the Inlet flange (Vessel Side) size is 3"(DN 80) and outlet flange size 2. It allows enough space for bolting clearance & insulation at vessel bottom flange.
At the time of enquiry and order below technical details & dimensions are must required, which is as under:
Center Bottom hole of Vessel
Vessel Bottom Flange Pad Thickness + Vessel Plate Thickness
Vessel Bottom Flange Drilling Standard
