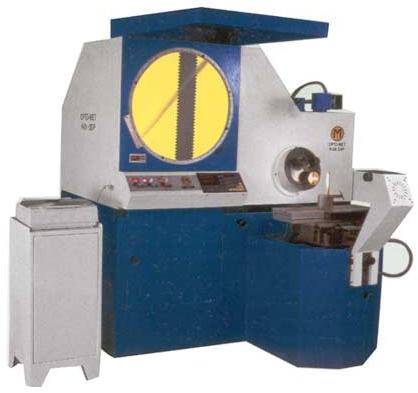

Floor Model Horizontal Light Path Profile Projector

Listing ID #124687

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The floor model horizontal light path profile projector made available by us is designed and manufactured as per international standards.the floor model horizontal light path profile projector is available with the following: screen diameter of 50/60/80/100 cmangular measurements: digital angular protractor with 0.01 degree l.c.

View More Details

Send Enquiry

Product Details

Technical Details

Rotating range	0-360 Degrees
Accuracy of X,Y Co-Ord. Table	+/- (3+L/55) µm
Magnifications- Standard	10X, 20X, 50X or 100X mounted on lens holder
Standard Work Stage Options	300 X 150mm / 400 X 150 mm / 500 X 150mm/600X200mm/750 X 200 mm
Measuring range X/Y Axis	150 X 200 / 200X200 / 250 X 100/300 X 200/ 375X200 MM
Operation on Z Axis	Motorized vertical movement with fine adjustment (special feature)
Measuring scale Resolution	0.005/0.001 mm (optional)
Focus Traverse	75 mm on the "Y" axis
Operation on Z Axis	Motorized vertical movement with fine adjustment (special feature)
Measuring scale Resolution	0.005/0.001 mm (optional)
Contour Illumination Distortion	0.05% on screen. 24V X 150W Halogen
Surface Illumination Distortion	0.075% on screen. Dual Optic fibre lamps 75W X 12V each, Cartridge Type, for low heat and Brightness
Accessories	Objectives 10X/20X/25X/50X/100X
Helix Tilting for Inspection of Threads	Optional with +/- 15 Degrees
Charts	Circle/Angle/Grid/Thread Profiles
"V" Blocks with centers & Clamps	Various sizes to suit customer's requirements
