Contact SupplierAccumulators are available for system through 28 tons nominal capacity. | ||

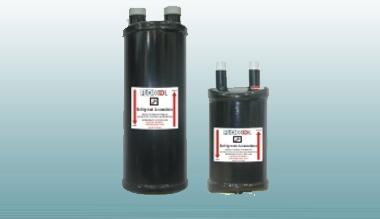

Suction line accumulator for CFC, HCFC & HFC refrigerants. | ||
 |  | |
Designed to operate in a range of + 40 Deg F -40 Deg F evaporator temperature. | ||
Solid copper fittings | ||
Corrosion resistant powder coating paint finish | ||
Inlet deflector that blends refrigerants flow to prevent internal splashing and aid in the collection of refrigerants oil in the bottom connection of the accumulator. | ||
Internal & External body with special chemical treatment to prevent rusting but comparable with CFC , HCFC & HFC Refrigerants | ||
 |  |  |
 | ||
Maximum working pressure: 400 psi 5-10" Diameter | Â | |
 |
F K AS. | A FITTING SIZE NOMINAL | UNIT WEIGHT Kg. | B DIAMETER IN INCHES | C HEIGHT IN INCHES |
D FITTING SEPERATION (IN.) |
TONS R-22 (+40 DEG F) |
HOLDING CAPACITY(LBS) 50% FULL |
||
R1343a | R22 | r404A/507 | |||||||
FKSA 465 | 5/8 | 1.9 | 4 | 9 | 2 | 3 | 2.3 | 2.1 | 1.9 |
FKSA 596 | 3/4 | 3 | 5 | 9 | 2 3/4 | 4 | 9.2 | 8.5 | 7.7 |
FKSA 597 | 7/8 | 3 | 5 | 9 | 2 3/4 | 3-5 | 9.2 | 8.5 | 7.7 |
FKSA 6139 | 1 1/8 | 5 | 6 | 13 | 3 5/8 | 7.5 - 10 | 12.7 | 11.8 | 10.7 |
FKSA 61411 | 1 3/8 | 5.5 | 6 | 14 | 3 5/8 | 10-15 | 17.1 | 15.4 | 14 |
FKSA 61713 | 1 5/8 | 7 | 6 | 17 | 3 5/8 | 15-28 | 21.8 | 20.1 | 18.2 |
FKSA 823 | 2 1/8 | 13 | 8 | 23 | 4 1/4 | 60 | 32.5 | 27 | 27 |
FKSA 1023 | 2 5/8 | 16 | 10 | 23 | 6 5/8 | 90 | 48.5 | 40 | 40 |
