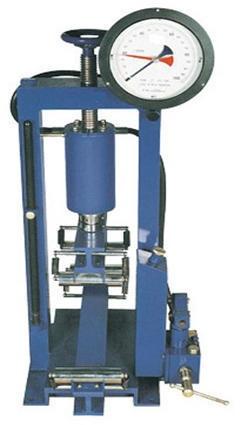

Contact SupplierThe machine consists of a hand operated load frame. The lower platen has two rollers, the distance between which is adjustable. For 150mm x 150mm x 700mm beam, the centre to centre distance between the rollers is 600mm, while it is 400mm for beams of size 100mm x 100mm x 500mm The upper platen has also a pair of rollers whose distance is adjustable. It is 200mm centre to centre, for 150mm X 150mm X 700mm size beam and 133mm for 100mm 100mm X 100mm X 500mm size beam. A pressure gauge to indicate load is fixed on the load frame. A small pumping unit is attached to the load frame. Total capacity of the machine is 100 KN and a 150mm dia pressure gauge - 100 KN x 1 KN is fitted on the machine. Since this is a hand operated light weight machine, it is useful for field laboratory also.
History | Throughout history, cementing materials have played a vital role and were used widely in the ancient world. The Egyptians used calcined gypsum as a cement and the Greeks and Romans used lime made by heating limestone and added sand to make mortar, with coarser stones for concrete.The Romans found that a cement could be made which set under water and this was used for the construction of harbours. |
---|---|
Speciality | Our Product is of Supreme Quality and meets Indian Standards. It is packed properly to ensure that there is no damage in transportion, and checked thoroghly by our Engineers & Dedicated Team of people before every dispatch. Now Buy with Confidence at Enggific ! |
Place | Used At College, Construction Site, Laboratory, Test House |
Profession | Used By Civil Engineer, Lab Incharge, Professor, Site Incharge, Technician |
Application | Used For Testing Of Cement, Testing Of Concrete |
