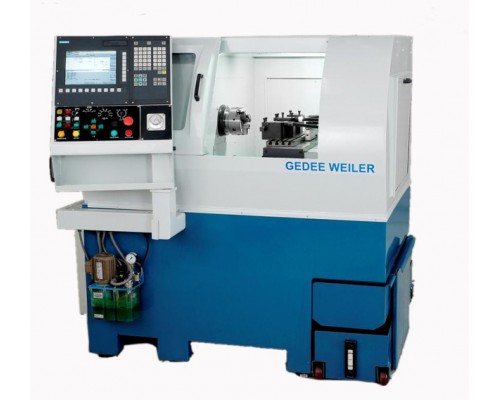

The innovative cost effective Flex Turn CNC Lathe Machine can be effortlessly adapted to meet customer requirement.
FLEX TURN CNC MACHINE can be fitted with linear tooling arrangement or eight station turret coupled with independent live tool. GEDEE WEILER is the only machine tool manufacturer in India offering such flexible CNC Lathe.
FLEX TURNÂ CNC CHUCKERÂ provides a combination of turning/ milling operations to reduce the manufacturing cost per component.
For specific application like slot milling, face drilling/threading, profile contouring, one separate set of live tools are provided with independent servo motor and drive. All these features combined on this CNC chuckermachine provide unsurpassed manufacturing speed and accuracy.
CNC CHUCKER MACHINE is highly suitable for alternate CNC machining solutions. Highly suitable for manufacturing medium size parts in the field of automobile, agriculture, surgical equipment, home appliances, aerospace and jewelry.Â
Gedee Weiler Turning Center - CNC automation - CNC Turning Center LathesÂ
Description | Unit | FT-25 | FT-32 | FT-42 | FT-51 | |
---|---|---|---|---|---|---|
Capacity | Swing over ('z' axis cover) dia | mm | 380 | |||
Swing over cross slide-dia | mm | 160 | ||||
Optimum Turning dia | mm | 140 | ||||
Max Bar Capacity dia | mm | 25 dia | 32 dia | 42 dia | 51 dia | |
SPINDLE | Chuck Size dia | mm | 130 dia | 165 dia | 165 dia | 200 dia |
Spindle Speed | mm | 50 - 4000 | ||||
Spindle Nose DIN 55026 | Type | A2-4 | A2-5 | A2-5LB | A2-6 | |
Spindle through bore | mm | 38 | 42 | 58 | 63 | |
TRAVEL | X axis travel | mm | 220 | |||
Z axis travel | mm | Short-265(s) long -340mm(L) | ||||
FEED RATE | Rapid Traverse X axis | mts./min | 20 | |||
Rapid Traverse Z axis | mts./min | 25 | ||||
Feed Rate | mm | 6000 | ||||
TURRET | No of tool Positions | no | 8 / 12 | |||
Tool Shank Size | mm | 20x20 | ||||
Boring bar size | mm | 25 Dia | ||||
MACHINE SIZE | Machine Height | mm | 1540 | |||
Floor Space | mm | 1650 x 1800 | ||||
Machine Weight (approx.) | Kg. | 1500 | ||||
CNC Controller | Siemens /Fanuc /Mitsubishi | mm | Siemens 802 D-SL,Fanuc - Oi Mate TD, Mitsubishi-E60 | |||
MOTOR POWER | Spindle motor rated Power -Continuous rating | KW | V0-2.2 KW -GDW (Mitisubishi), V1-3.7 Kw (Siemens/Fanuc/Mitisubish).V2-5.5 Kw (Siemens/Fanuc/Mitisubish) V3-7.5 Kw (Siemens/Fanuc) |
