Flexible Flat Copper Earth Braids

Listing ID #2399132

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

Sited in Mumbai(India), we guarantee safe side deliveries of consignments in a time limited period. We are the most demanding entity when it comes to Flexible Flat Copper Earth Braids!
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Retailer
  • GST No. 27AAHFN2518H1ZB

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

Graph


Download Detail File : Click Here

Copper Braid

Product Code Length B (mm) Overall Dimensions (mm) Hole Dia A (mm) Cross-Sex Area (mm²) Weight (Kg)
NCBB200/6/7 200 12 x 1 7.0 6.0 0.01
NCBB400/6/7 400 12 x 1 7.0 6.0 0.02
NCBB200/10/7 200 15 x 1.5 7.0 10 0.02
NCBB400/10/7 400 15 x 1.5 7.0 10 0.04
NCBB200/16/9 200 19 x 2.5 9.0 16 0.03
NCBB400/16/9 400 19 x 2.5 9.0 16 0.06
NCBB200/25/11 200 25 x 3 11 25 0.05
NCBB400/25/11 400 25 x 3 11 25 0.10
NCBB200/35/11 200 25 x 3.5 11 35 0.09
NCBB400/35/11 400 25 x 3.5 11 35 0.15
NCBB200/50/11 200 30 x 5 11 50 0.10
NCBB400/50/11 400 30 x 5 11 50 0.20
NCBB20070/13 200 32 x 6 13 70 0.13
NCBB400/70/13 400 32 x 6 13 70 0.25
NCBB200/95/13 200 37 x 6 13 95 0.19
NCBB400/95/13 400 37 x 6 13 95 0.37
NCBB200/120/17 200 45 x 6 17 120 0.23
NCBB400/120/17 400 45 x 6 17 120 0.46
NCBB200/1501/7 200 50 x 8 17 150 0.30
NCBB400/150/17 400 50 x 8 17 150 0.60

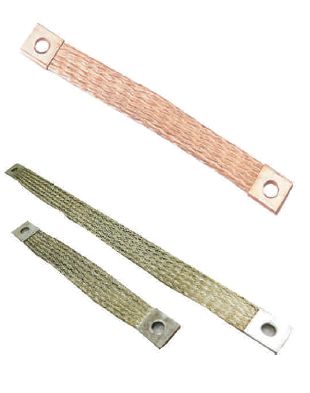

Flexible copper or flexible tinned copper braid terminated with pressed ferrule connector at each end, suitable for bonding gates, doors, fences etc.



Other sizes, materials, hole, sizes etc. available upon request.



Material : Bare Copper / Tinned copper.



Company Details close-icon

We would like to introduce ourselves as one of the leading manufacturers & Exporter of Cable, Earthing Accessories And Copper Semis ( Flat, Strip, Tape, Sheet, Plate etc. ) & Components ( As per your Sample or Drawing ) to the companies involved in Energy, Cabling, Electrical, Telecommunication & Turn Key Industries. Kindly have a look at our range of products listed below.
Earthing & Lightning Protection Accessories
1 – Tinned and Bare Flexible Braids and Connectors
2 - Earth Bars / Grounding Bars
3 - Solid Copper and Copper Bonded Rods
4 - Copper and Copper Bonded Earthing Plates
5 - Copper & Stainless Steel Earthing Tape / Strips
6 - Copper & Stainless Steel Earthing Rods
7 - Earthing Clamps (Square Tape Clamp , DC Tape Clip , Rod to Cable Clamp etc)
8 – Stainless Steel Cable Ties
Cables and Cable Accessories
1. Bell Mouth Lugs
2. Straight Barrel Lugs
3. Narrow Palm Lugs
4. Long Barrel Lugs
5. Copper Connectors & Clips
6. IP 68 Cable Glands , Marine Glands , Alco Type Clands , CXT Glands , CW Glands , BW Glands , PVC Glands
7. Split Bolt Connectors
Copper Based Products
1 - Strips
Size range : Width - 10mm to 100mm
Thickness - 1mm to 6mm
2 - Bare & Tinned Busbar
Size range : Width - 12mm to 450mm
Thickness - 0.05mm to 12mm
3 - Conductors
Size range : Diameter - 6mm2 to 630mm2
4 - Rods
Size range : Width - 6mm to 150mm
Grades Available : ETP / EC Grade , Oxygen Free Copper , Cupro Nickel 90/10 & 70/30 , Brass.
Plating available : Tin , Lead & Silver
Nexus Metal & Alloys conducts strict test on the size & quality of the material. Our powerful sources to procure material makes us very competitive. We offer scope for Third Party Inspection.
We rest assure you of our quality , after sales services & on time delivery.
  • Nature of Business Manufacturer / Exporter / Supplier / Retailer
  • Number of Employees Below 20
  • Year of Establishment 2009
