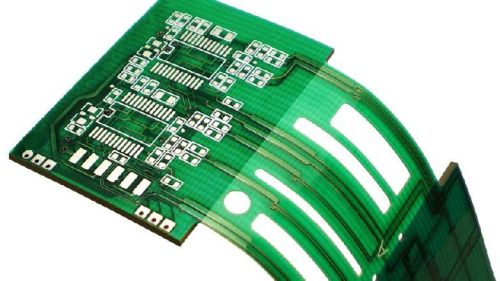

Flexible circuits

Listing ID #3957278

Get Latest Price

Minimum Conductor Width12 mils (0.3mm)
Minimum Plated Hole Size16 mils (0.4mm)
Maximum Number Of Layer2 Layer (DSPTH)
Maximum Board Size600mm X 520mm
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Minimum Conductor Width 12 mils (0.3mm)
Maximum Number Of Layer 2 Layer (DSPTH)
Maximum Board Size 600mm X 520mm
Minimum Plated Hole Size 16 mils (0.4mm)
Board Thickness Tloerence 10%
Minimum Conductor Spacing 12 mils (0.3mm)

Flexible printed circuit boards are used to make interconnections in systems that have no room for rigid PC boards. Flex circuits are bendable and lightweight and are used in applications where the circuit is bent or flexed in two or more planes in the assembly or installation process.

Drill Tloerences
0.5 - 2.5mm	(+/-) 0.05mm
> 2.5mm	(+/-) 0.10mm
Size Tloerences
< 150mm	(+/-) 0.10mm
> 150mm	(+/-) 0.20mm
Product Finish
Singal Side	HAL / TIN
Double Side	HAL / TIN BBT
Solder Mask Finish	SM OBC / PISM
Solder Mask Colour	Green / White / Blue / Red / Black
Legent Colour	White / Black
Product Raw Material
Singal Side	FR4 , CEM1, MC PCB
Double Side	FR4
Fixible	0.2MM FR4
