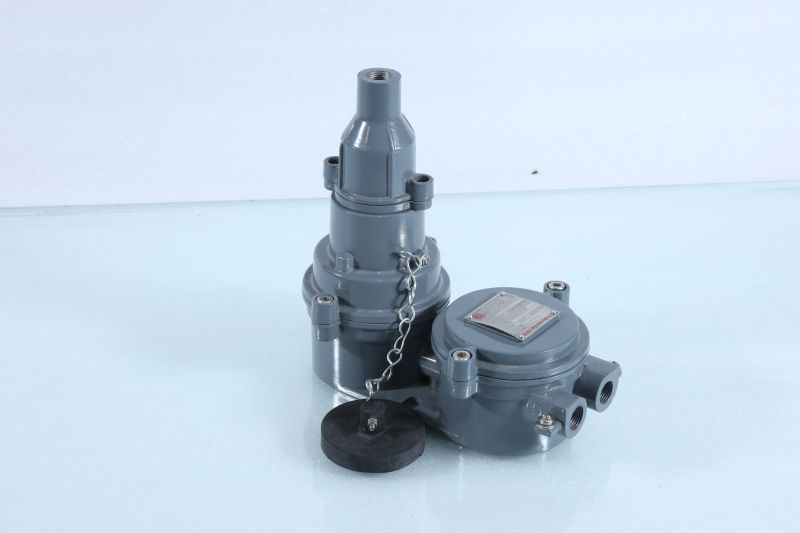

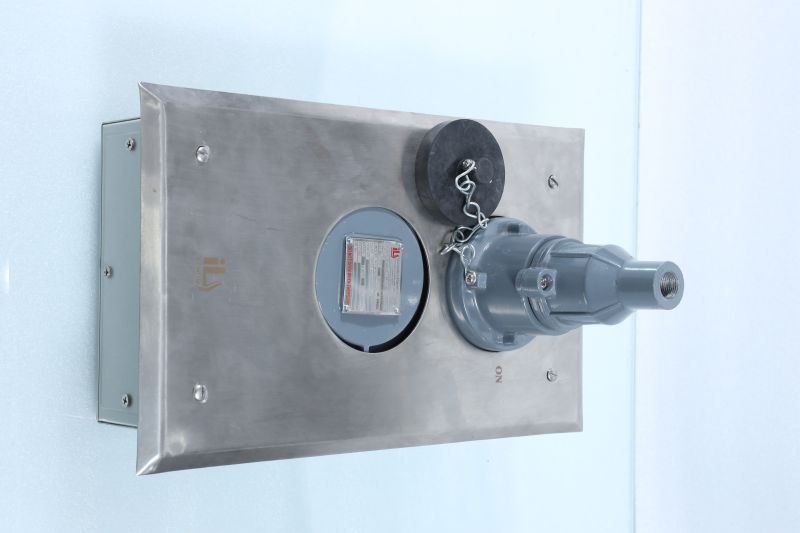

Flameproof Switch Socket With Plug

Features:

• Fire & Ignition proof.
• AL die-cast LM-6 housing.
• Two earthing for better safety-internal & external.
• Neoprene gasket for trouble free long life.
• External hardware made of SS.
• High rating contacts 10A, 24/240/415 V AC/DC
• Highly reliable professional design.

Applications:

• Chemical, paint, fertilizer industries,
• Oil & gas, refinery, petrochemicals,
• LPG bottling, pharmaceutical
• Steel, Cement industries, Mines

Standards Compliance

IS/IEC 60079-1:2014

Options

Canopy — Light Grey 631 epoxy paint ( GI/MS/FPR)

• Cable Gland — M20 or 5" NPT (Brass/AL/SS304/SS316)
• Stopper plug — M20 or 1/2' NPT (Brass/AUSS304/SS316)
• Start Push Button — KEY operated
• Hood Cable Gland — PVC, Black Color
• Feed terminal — DIN rail — Screw Type 2.4/4/6 sq mm
• Packing — Wooden

Applicable Use

• Zone 1 & Zone 2
• Gas group IIA, IIB, IIC, IIIC, Temperature class T6
