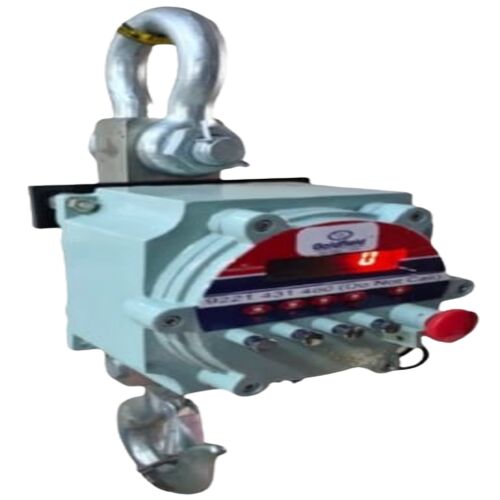

GOLDFIELD Flameproof Crane Scale, for Industrial

Listing ID #6332635

18,500 - 23,500 / piece
Get Latest Price
  • MOQ 5 Piece
  • ApplicationIndustrial
  • TypeConstruction Crane, Crane
  • Country of OriginIndia
  • Brand NameGOLDFIELD
  • Supply Type Exporter, Supplier, Retailer, Distributor, Importer, Trader, Buying House
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 5 Years
  • Nature of Business Manufacturer
  • GST No. 27AAMFG3158R1ZM

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Application Industrial
  • Type Construction Crane, Crane
  • Country of Origin India
  • Brand Name GOLDFIELD
  • Display Type Digital LED
  • Power Supply 230 V AC Mains else DC 12V/24V
  • Feature Standard weighing scale
  • Usage / Application Commercial
  • Model Name / Number GWS P96
  • Class II / III
  • Frequency Supply 50Hz, ±10%
  • Material of construction ABS Plastic Housing
  • Repeatability 0.019 %FS
  • Mode of Operation Kg / Gram / Liter
  • Display / Digit Type 0.56” Seven Segment
  • Display Size 14 mm
  • Number of Digits 6
  • Display Resolution 2,92,000
  • Calibration Semiautomatic
  • Number of Switch Keys 4
  • Response Time 50 mSec to 70 mSec
  • Type of Weighing Scale Panel Mounting Indicator
  • Portable Yes
  • Max. Weighing Capacity Kg SETTABLE
  • Internal Resolution 1,60,00,000
  • Linearity 99.9% of the Rated capacity ±1%
  • Warranty 1 Year against any manufacturing defects
  • Humidity 10% to 95% Relative humanity (Non-condensing)
  • Operating/Working Temperature 0˚ C to 45˚ C
  • Display Led Color Bright Red / Green
  • Mounting Type Panel Mounting
  • Least Count / Accuracy SETTABLE
  • Taring Range Full Load Tare

UNIQUE FEATURES:-

  •  MS housing for light in weight
  •  RELAY/SET POINT output according weighments
  •  One/Two/Three Relay i.e. up to six Set point output features
  •  External Load connection point, to connect load externally
  •  Internal power supply for relay energized
  •  Relay can operate on AC 230V or DC 5V / 12V / 18V / 24V
  •  Relay Limit manually settable for ON & Off (Energized/Deenergized)
  •  Tolerance is also settable for accurate output
  •  6 Volt PTH type Glass epoxy Motherboard with High Sensitivity Features
  •  Simple and Instant Operation
  •  Lacquer Protected Motherboard to Avoid Moisture
  •  Auto Standby Mode for Low Consumption of Power
  •  14 mm Bright Red LED Display with High Brightness
  •  Advanced Micro Controller technology base Mother Board
  •  AVIA technology base 24 Bit delta sigma ADC for higher resolutions
  •  Rough and Tough model for daily uses
  •  Linearity from least count to full capacity
  •  Heavy duty New Model in new design
  •  Auto Zero Tracking System
  •  Easy to operate
  •  User Friendly
  •  Auto Power Saver
  •  Also available in OEM base
  •  The best battery backup than another card
  •  6 Volt / 4.5 Ah Battery for more Back up (OPTIONAL)


Additional Information

  • Port of Dispatch Mazgaon
  • Packaging Details Thermocol in corrugated Box
  • Delivery Time 2-3 DAYS
Interested in this product? Ask for more details & Latest Price from seller
Send Enquiry

Company Details close-icon

Goldfield Weighing Solutions was established to solve the weighing and measuring problems of customers everywhere. We are today one of the leading companies manufacturing a variety of weighing scales that are designed to give perfect and accurate solutions. We are considered as one of the premium companies because of the perfection of our products.



People have come to trust us because of the high quality components that we use in our manufacturing process. Even the management that we undertake in our company is absolutely perfect and uncompromised.



We are backed by a team of professionals who are technically sound and have the capability of undertaking any project that is at hand. Not only the knowledge that they possess is important, equally important is their sincerity and dedication in their desire to serve our customers. This has led to the success of our company which was established in 2014 in Mumbai, Maharashtra.



Not to forget to mention the ultra-modern unit that we have. It is equipped with state-of-the-art machinery that is the latest in the field. All these factors and our ability to deliver promptly have helped us carve a niche for ourselves in the industry as one of the finest manufacturers. We hope to continue with our dedicated customers all over the countries of India, Bhutan, Nepal, Sri Lanka, Thailand, South Africa, Dubai, Iran, Indonesia, Bangladesh and the Middle Eastern countries.

  • Nature of Business Manufacturer / Exporter / Supplier / Retailer / Distributor / Importer / Trader / Buying House
  • Number of Employees 19
  • Year of Establishment 2014
