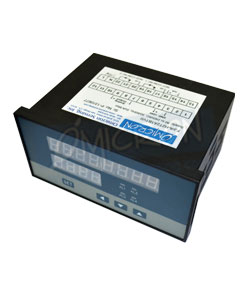

FJ: Flow Indicator Totaliser

Listing ID #3831548

Get Latest Price

Display4 digit, 0.5” Red LED for Flow Rate & 8 digit, 0.3”
Accuracy Better than + 0.25% of F. S.
Range: Programmable (0 to 9999)
ModelFJ
Retransmission NIL
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Series FJ/A is micro-controller based flow indicator totaliser designed for various industrial applications. These can be used for indication & totalisation of flow. The input can be processed linearly or square rooted. The built-in battery back-up is provided for the memory to avoid loss of data in case of power failure. The micro-controller based design provides full flexibility for flow metering applications.

Features :

	Indication through LED
	Input selectable as linear / square root.
	Normal / Batch mode for operation.
	Averaging of inputs for turbulent flow.
	Programmable low flow cut-off.

Operating Modes	: Normal / Batch
Input	: Linear / Square Rooted
	: 1) Current ( 4-20 mA) 2) Voltage (1-5 V / 0-5 V) 3) Frequency (0-10 Khz)
Display	: 4 digit, 0.5” Red LED for Flow Rate & 8 digit, 0.3” Red LED for Totalised Flow
Range	: Programmable (0 to 9999)
Accuracy	: Better than + 0.25% of F. S.
Open Sensor Indication	: Provided
Power Supply	: 1) 24 V DC, External 2) 90 - 250 V AC, 50 Hz
Power Consumption	: Less than 10 VA
Temperature Drift	: < 0.01% of F. S. per 0C change
Response Time	: < 100 mSec
Isolation	: 1.4 KV between Input, Output & Power Supply
Enclosure	: 1) DIN Std
Dimensions	: 80 (H) x 160 (W) X 115 (D) in mm approx. for DIN std. enclosure
Mounting	: Flush of the Panel for DIN std. enclosure
Weight	: 1 kg (Approx.)
Operating Conditions	: Temperature 0 to 55 0C / Humidity 5 to 95% non condensing
