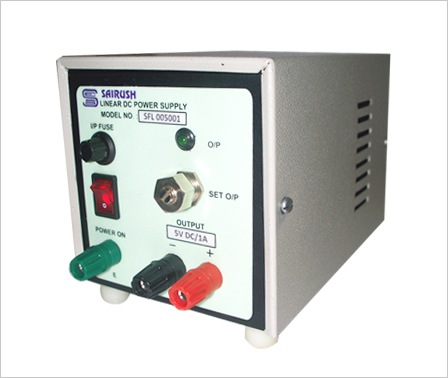

Fixed Output Power Supply

Listing ID #3844296

  • Supply Type Manufacturer, Supplier
  • Preferred Buyer Location All over the world

 Features :- Fixed Output Voltage (Settable Over ±10% of Nominal Output Voltage). Factory Set or Adjustable Current Limit. Load & Line Regulation: ±0.05%. Ripple & Noise: 1 mV....
View More Details
Send Enquiry

Company Information

  • Member Since 15 Years
  • Nature of Business Exporter

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

 Features :-
Fixed Output Voltage (Settable Over ±10% of Nominal Output Voltage).
Factory Set or Adjustable Current Limit.
Load & Line Regulation: ±0.05%.
Ripple & Noise: 1 mV (r. m. s.) Max.
Protected Against Overload & Short Circuit by Means of Fold back Circuitry.
Crowbar Type Over Voltage Protection at Output (Only for 5V).
Remote Sensing for Distantly Situated Loads for Model above 5 Amp.
Input Voltage: 230V AC ±10%, 50Hz, Single Phase.
Operating Temperature Range: 0 to 55°C.

   OPTIONAL FACILITIES : (At Extra Cost) :-
Metering of Output Voltage & / or Current.
Over voltage Protection
Input Voltage: 115V AC ±10%.
Rack-Mounting, Wall Mounting, Base Mounting.
TTL Compatible Active ON / OFF.


MODEL DESCRIPTION MODEL DESCRIPTION
SFL 005002 5V / 2A SFL 024005 24V / 5A
SFL 005004 5V / 4A SFL 024008 24V /8A
SFL 005006 5V / 6A SFL 024010 24V /10A
SFL 005010 5V / 10A SFL 024015 24V / 15A
SFL 005015 5V / 15A SFL 024020 24V / 20A
SFL 005020 5V / 20A SFL 024030 24V / 30A
SFL 012002 12V / 2A SFL 048002 48V / 2A
SFL 012004 12V / 4A SFL 048004 48V / 4A
SFL 012006 12V / 6A SFL 048006 48V / 6A
SFL 012010 12V / 10A SFL 04S008 48V / 8A
SFL 012015 12V / 15A SFL 048010 48V / 10A
SFL 012020 12V / 20A SFL 048012 48V / 12A
SFL 024001 24V / 1A SFL 048015 48V / 15A
SFL 024002 24V / 2A SFL 048020 48V / 20A
SFL 024003 24V / 3A SFL 048030 48V / 30A

Company Details close-icon

SAIRUSH ELECTRONICS SYSTEMS has been established in 1995 by a dynamic entrepreneur with Technical & Management Qualification & having previous work experience in diverse fields such as R & D, Production, Marketing & Servicing of collectively more than 15 years in reputed concerns. Engineering & Production expertise is continuously applied to the technical needs of the Industry.
Today, the Company stands dedicated to serve diverse clientele in field of Electronics covering a very wide spectrum which includes,
POWER SYSTEMS consisting of SMPS, DC DC Converters, Float cum-Battery Chargers, Linear DC Power Supplies, High Current Rectifier, High Voltage Power supplies.
RFI/EMI DEVICES consisting of Filters for DC & AC Applications.
CUSTOM DESIGNED PANELS to suite specific application of individual customers. We take careful, controlled steps to ensure that a quality, ragged product comes off our lines.
It has been 'SAIRUSH ELECTRONICS SYSTEMS' endeavor to being quality equipments at affordable prices to the market.
'SAIRUSH ELECTRONICS SYSTEMS' warrants each instrument to be free from defects in materials and workmanship. This obligation is limited to servicing any SAIRUSH instrument or part returned to the company for that purpose and making goods any parts thereof which shall be, within warranty period, returned to the company under a written intimation, and which to the company's satisfaction to be found defective. The company reserves the right to decide as to the whether the repair work should be carried out in the Company's factory / service center, or at site, or at any other place. The freight incurred for to and fro dispatch of defective material will have to be born by the purchaser, and the transit risk for such material will reset with the purchaser.
The Warranty will last for a period of 12 months from the date of initial delivery / dispatch of the instrument from the factory. The Warranty for the replaced components will lapse alongwith that of the main instrument.
The Company reserves the right to make changes in design and specifications without notice and without any obligations to make such changes on units previously sold.
Unless supersed, or specified otherwise in contractual form, this warranty is made expressly lieu of other liabilities and obligations on the part of the Company.
Unless otherwise agreed upon in contractual form, the title of the goods passes to the purchaser, upon delivery to him or to his representative at the company's factory or upon delivery to the transport carrier, as the case may be.
